Same model may have multiple batches, images only for reference.

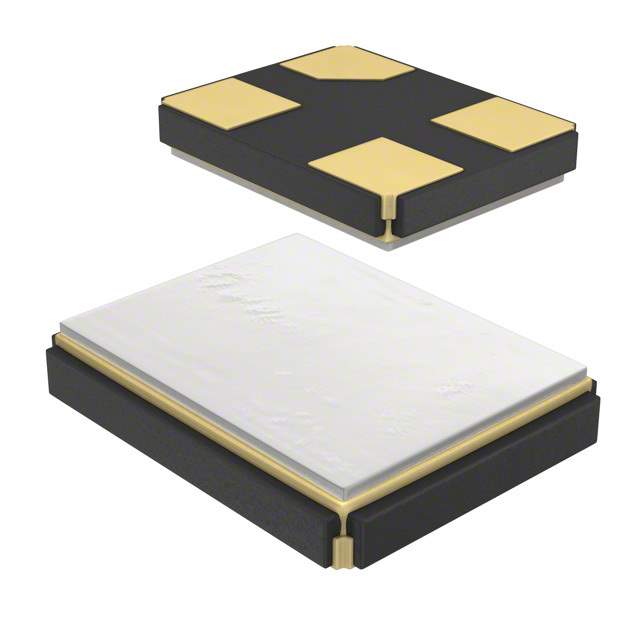

NX2016AB-38.4MHZ ST4 Real Image
Same model may have multiple batches, images only for reference.

NX2016AB-38.4MHZ ST4

Part No NX2016AB-38.4MHZ ST4
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 38.4000MHZ 8PF SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Features 38.4 MHz ±20ppm Crystal 8pF 60 Ohms 4-SMD, No Lead
Manufacturer NDK
Series NX2016AB
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -30°C ~ 75°C
Mounting Surface Mount
Package 4-SMD, No Lead
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Part Number NX2016AB384MHZST4, 644-1121-2, NX2016AB-38.4MHZ ST4-STD-CSZ-2, 644-1121-1, 644-1121-6
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 887939-NX2016AB-38.4MHZ ST4
Ultra Librarian 3D Model Ultra Librarian NX2016AB-38.4MHZ ST4 CAD Model

Description

The NX2016AB-38.4MHZ ST4 is a crystal oscillator manufactured by NDK.

  • Status: obsolete
  • Category: Crystals
  • Series: NX2016AB
  • Frequency: 38.4 MHz ±20ppm
  • Load Capacitance: 8pF
  • ESR: 60 Ohms
  • Mounting Type: Surface Mount
  • Package: reel - TR
  • Operating Temperature Range: from -30°C to 75°C
  • Supply and Demand Status: limited
  • Quantity per Package: 3000
