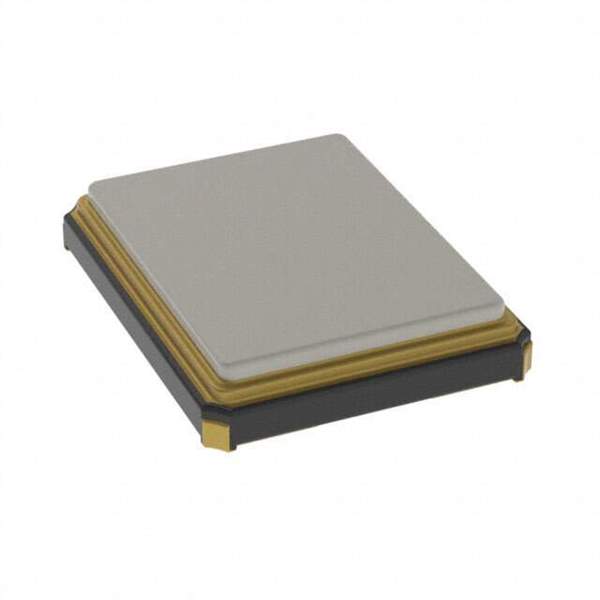

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr NDK
Series NX3225SA
Package Tape & Reel
Type MHz Crystal
Frequency 40 MHz
Frequency Stability ±15ppm
Frequency Tolerance ±15ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 75°C
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.024" (0.60mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Standard Package 3,000 pcs
Win Source Part Number 1383101-EXS00A-CS14527
Ultra Librarian 3D Model Ultra Librarian EXS00A-CS14527 CAD Model

Description

The 1383101-EXS00A-CS14527 is a high-quality crystal oscillator designed for use in electronic devices.

  • Series: NX3225SA
  • Frequency: 40 MHz
  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height: 0.024" (0.60mm)
  • Mounting Type: Surface Mount
  • Package: 4-SMD, no lead
  • ESR: 50 Ohms
  • Frequency Stability: ±15ppm
  • Mode: Fundamental
  • Load Capacitance: 8pF
  • Temperature Range: -10°C to 75°C
  • Manufacturer: NDK
  • Moisture Sensitivity Level: 1 (unlimited)
  • Standard Package: 3,000 pieces
