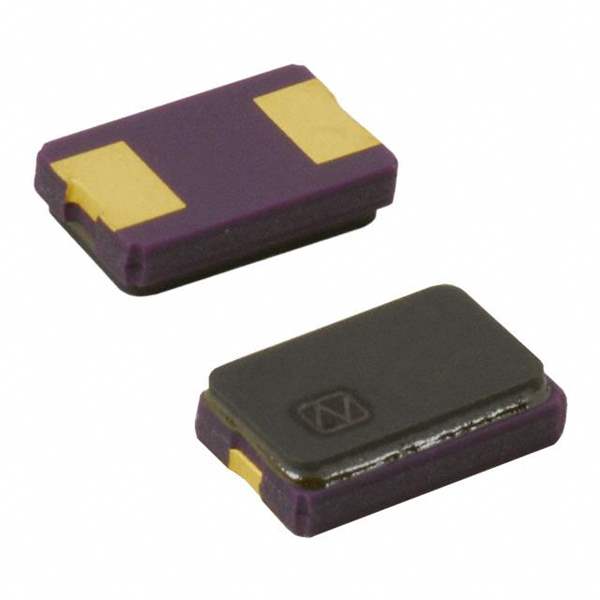

10.000000MHZ NDK
Same model may have multiple batches, images only for reference.

10.000000MHZ

Part No 10.000000MHZ
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 10.0000MHZ 8PF SMD
Datasheet
10.000000MHZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer NDK America, Inc.
Packaging Reel - TR
Status Active
Type MHz Crystal
Frequency 10MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 8pF
ESR 120 Ohm
Operating Mode Fundamental
Temperature Range - Operating -10°C to 70°C
Mounting SMD (SMT)
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.059" (1.50mm)
Win Source Part Number 147555-10.000000MHZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 10.000000MHZ CAD Model

Description

10.000000MHZ - This quartz crystal oscillator offers a precise frequency of 10 MHz, making it essential for timing accuracy in electronic circuits.

Applications:

  • Communication Devices
  • Microcontrollers
  • RF Applications

Features and Benefits:

  • High-frequency stability
  • Low phase noise for clean signal outputs
  • Wide temperature range

It is an indispensable component for any project that requires reliable timing signals and frequency control.
