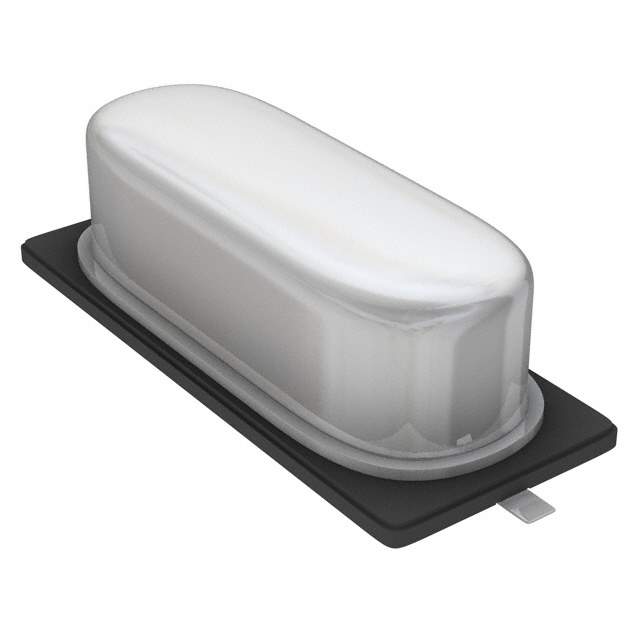

ABLS2-6.000MHZ-D4Y-T Real Image
Same model may have multiple batches, images only for reference.

ABLS2-6.000MHZ-D4Y-T

Part No ABLS2-6.000MHZ-D4Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 6.0000MHZ 18PF SMD / 6 MHz ±30ppm Crystal 18pF 100 Ohms HC-49/US
Datasheet
ABLS2-6.000MHZ-D4Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABLS2
Package Tape & Reel
Type MHz Crystal
Frequency 6 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.130" (3.30mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names ABLS26000MHZD4YT,535-9861-6,535-9861-2,535-9861-1
Standard Package 1,000
Win Source Part Number 1184568-ABLS2-6.000MHZ-D4Y-T
Ultra Librarian 3D Model Ultra Librarian ABLS2-6.000MHZ-D4Y-T CAD Model

Description

The ABLS2-6.000MHZ-D4Y-T crystal is a high-quality electronic component manufactured by Abracon LLC.

  • Frequency: 6 MHz
  • Frequency Tolerance: ±30ppm
  • Operating Mode: Fundamental
  • Load Capacitance: 18pF
  • Equivalent Series Resistance (ESR): 100 ohms
  • Package: Tape and Reel
  • Mounting Technology: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • Package/Case: HC-49/US
  • Dimension: 0.449 inches L x 0.185 inches W (11.40mm x 4.70mm)
