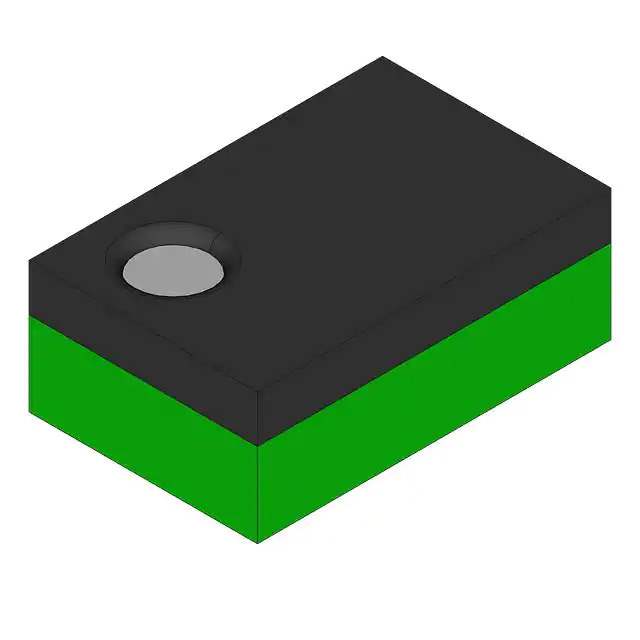

LP5522TM

Name: LP5522TM
Brand: National Semiconductor (TI)
SKU: 621220
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LP5522TM
Manufacturer	National Semiconductor (TI)
Catalog	PMIC - LED Drivers
Description	IC LED DRIVER LINEAR 20MA 6DSBGA
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr	National Semiconductor (TI)
Package	Bulk
Product Status	Active
Type	Linear
Internal Switch(s)	Yes
Number of Outputs	1
Voltage - Supply (Min)	2.7V
Voltage - Supply (Max)	5.5V
Voltage - Output	2.7V ~ 5.5V
Current - Output / Channel	20mA
Temperature Range - Operating	-30°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-WFBGA, DSBGA
Supplier Device Package	6-DSBGA (1.44x1.16)
Base Product Number	LP5522
Standard Package	452 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	621220-LP5522TM
Ultra Librarian 3D Model	Ultra Librarian LP5522TM CAD Model

Alternative Products

Description

The LP5522TM is an LED driver integrated circuit (IC) from National Semiconductor (TI).

Category: Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Type: linear type LED driver
LED output: capable of driving a single LED output with a current of 20mA
Voltage supply range: 2.7V to 5.5V
Temperature range: -30°C to 85°C
Package: compact 6-WFBGA, DSBGA package
Switches: internal switches
Efficiency: offers a high level of efficiency for LED driving
Choice: an ideal choice for LED lighting applications
