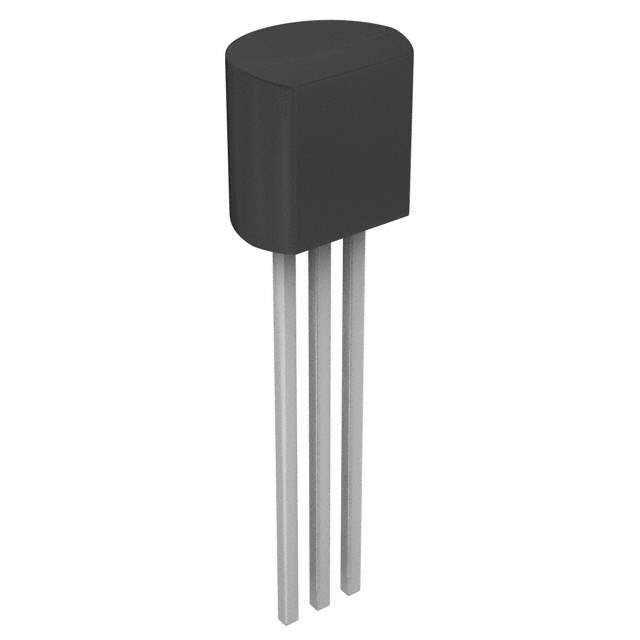

The LMV431BCZ is a precision low voltage shunt regulator from Texas Instruments (formerly National Semiconductor). It's designed to be a versatile voltage reference offering high accuracy and stability over a wide range of operating conditions. The device functions similarly to a Zener diode but offers improved performance, particularly in terms of precision and adjustability. It's a three-terminal device with an anode, cathode, and reference pin. The reference pin allows for adjusting the output voltage using external resistors.

Applications:

• Precision voltage references
• Error amplifiers in switching power supplies
• Adjustable power supplies
• Voltage monitoring
• Instrumentation
• Data acquisition systems

Features:

• Low voltage operation (1.24V reference)
• Adjustable output voltage
• Tight tolerance
• Low temperature coefficient
• Low output impedance
• Sink current capability: 100mA
• Available in various packages including SOT-23

Benefits:

• Improved accuracy and stability compared to Zener diodes
• Flexibility in setting the output voltage
• Reduced component count in power supply designs
• Enhanced performance in precision measurement applications
• Stable operation over temperature variations

Additional Details:

The LMV431BCZ offers a typical reference voltage of 1.24V with a tight tolerance, making it suitable for applications requiring precise voltage regulation. The adjustable output voltage feature allows users to configure the device for specific voltage requirements. The low output impedance ensures stable operation even with varying load currents. The device is available in a SOT-23 package making it suitable for high-density circuit boards. The operating temperature range is typically -40°C to +125°C. The device requires an external resistor network to set the desired output voltage, allowing for fine-tuning and customization. The reference input current is very low, minimizing loading effects on the voltage divider network. The LMV431BCZ is widely used in linear regulators, switching power supplies, and instrumentation circuits where a stable and accurate voltage reference is critical. The device is also available in automotive qualified versions.
