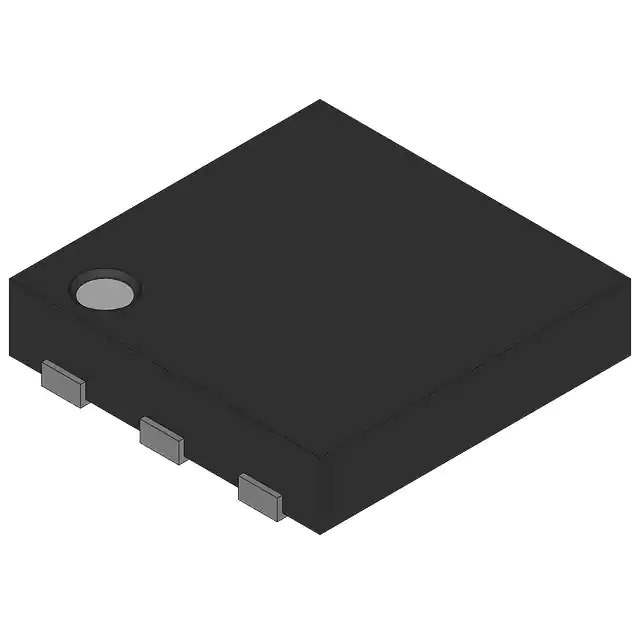

LMV221SD Real Image
Same model may have multiple batches, images only for reference.

LMV221SD

Part No LMV221SD
Manufacturer National Semiconductor (TI)
Catalog RF Detectors
Description ANALOG CIRCUIT, 1 FUNC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Detectors
Mfr National Semiconductor (TI)
Series LMV221
Package Bulk
Product Status Active
Frequency 50MHz ~ 3.5GHz
RF Type 802.11b/g, CDMA, EDGE, GPRS, GSM, UMTS, W-CDMA, WLAN
Input Range -45dBm ~ -5dBm
Accuracy ±0.5dB
Voltage - Supply 2.7V ~ 3.3V
Current - Supply 7.2 mA
Mounting Type Surface Mount
Package / Case 6-WDFN Exposed Pad
Supplier Device Package 6-WSON (2.2x2.5)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
Win Source Part Number 828018-LMV221SD
Ultra Librarian 3D Model Ultra Librarian LMV221SD CAD Model

Description

The LMV221SD is an RF detector integrated circuit (IC) in the 6-WDFN exposed pad package. It is part of the LMV221 series and is designed for RF and wireless applications.

  • Frequency Range: 50MHz to 3.5GHz
  • Supply Current: 7.2 mA
  • RF Types: 802.11b/g, CDMA, EDGE, GPRS, GSM, UMTS, W-CDMA, WLAN
  • Accuracy: ±0.5dB
  • Input Range: -45dBm to -5dBm
  • Supply Voltage Range: 2.7V to 3.3V
  • Package: 6-WDFN
  • Manufacturer: National Semiconductor (TI)
