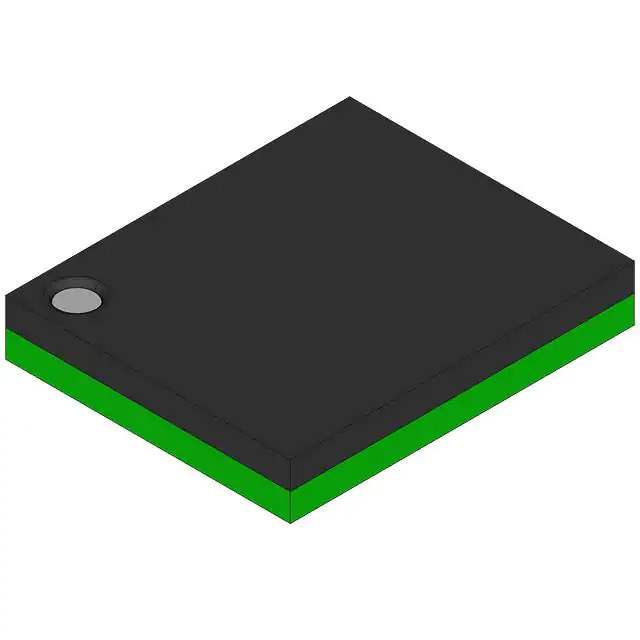

LM3535TME Real Image
Same model may have multiple batches, images only for reference.

LM3535TME

Part No LM3535TME
Manufacturer National Semiconductor (TI)
Catalog PMIC - LED Drivers
Description LED DRIVER, PBGA20
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr National Semiconductor (TI)
Package Bulk
Product Status Active
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 8
Voltage - Supply (Min) 2.7V
Voltage - Supply (Max) 5.5V
Voltage - Output 2V ~ 4V
Current - Output / Channel 25mA
Frequency 1.33MHz
Dimming PWM
Applications Backlight, Lighting
Temperature Range - Operating -30°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 20-WFBGA, DSBGA
Supplier Device Package 20-DSBGA (2.04x1.78)
Standard Package 250 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 616301-LM3535TME
Ultra Librarian 3D Model Ultra Librarian LM3535TME CAD Model

Description

The National Semiconductor (TI) LM3535TME is a DC DC regulator integrated circuit (IC) designed for LED driver applications.

  • Manufacturer: National Semiconductor (TI)
  • Category: Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
  • Applications: Backlight and Lighting
  • Voltage Output Range: 2V to 4V
  • Frequency: 1.33MHz
  • Current Output: 25mA per channel
  • Outputs: 8
  • Topology: Switched Capacitor (Charge Pump)
  • Dimming: PWM
  • Voltage Supply Range: 2.7V to 5.5V
  • Mounting: Surface Mount
  • Temperature Range: -30°C to 85°C
  • Status: Active
  • Packaging: Bulk
