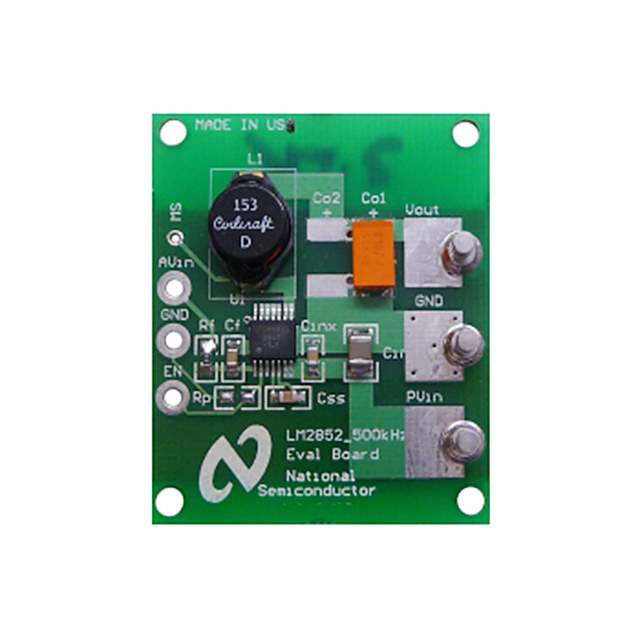

The LM2852Y-3.3 is a SIMPLE SWITCHER® step-down voltage regulator from Texas Instruments (formerly National Semiconductor). It's designed to provide a simple and efficient solution for converting higher input voltages to a regulated 3.3V output. It's part of the LM2852 series, known for its ease of use and integrated features.

Applications:

• Point-of-Load Regulation: Provides regulated power to specific components or sub-systems within a larger electronic device.
• Industrial Control Systems: Powers microcontrollers, sensors, and other components in industrial automation equipment.
• Telecom Equipment: Used in routers, switches, and base stations to provide stable voltage for various circuits.
• Automotive Systems: Supplies power to automotive electronics, such as infotainment systems and control units.
• Battery-Powered Devices: Efficiently converts battery voltage to a stable 3.3V supply for portable electronics.

Features:

• Fixed 3.3V Output Voltage: Provides a precisely regulated 3.3V output.
• 3A Output Current Capability: Delivers up to 3A of continuous output current.
• Wide Input Voltage Range: Operates from a wide input voltage range, typically 4.5V to 25V.
• High Efficiency: Achieves high efficiency, reducing power dissipation and heat generation.
• Integrated MOSFET: Includes an internal MOSFET switch, simplifying the design and reducing component count.
• Thermal Shutdown Protection: Protects the regulator from overheating by shutting down the output if the temperature exceeds a safe limit.
• Current Limit Protection: Limits the output current to protect the regulator and the load from overcurrent conditions.

Benefits:

• Simple Design: The integrated MOSFET and minimal external components simplify the design process.
• High Efficiency: High efficiency reduces power loss and extends battery life in portable applications.
• Robust Protection: Thermal shutdown and current limit protection enhance the reliability of the regulator and the overall system.
• Wide Input Voltage Range: Allows for operation from a variety of input sources.
• Compact Solution: Reduces board space requirements.
• Cost-Effective: Provides a cost-effective solution for step-down voltage regulation.

Additional Details:

The LM2852Y-3.3 uses a switching regulation technique to efficiently convert the input voltage to the desired 3.3V output. The switching frequency is typically around 500 kHz, which allows for the use of small external components. The device requires external capacitors and an inductor for proper operation. The thermal shutdown protection activates at a junction temperature of approximately 150°C. The device is typically available in a TO-263 package. Proper thermal management is essential to ensure reliable operation at high output currents. Detailed information on component selection, layout considerations, and thermal performance can be found in the device datasheet. The LM2852Y-3.3 is a reliable and easy-to-use solution for step-down voltage regulation in a variety of applications.
