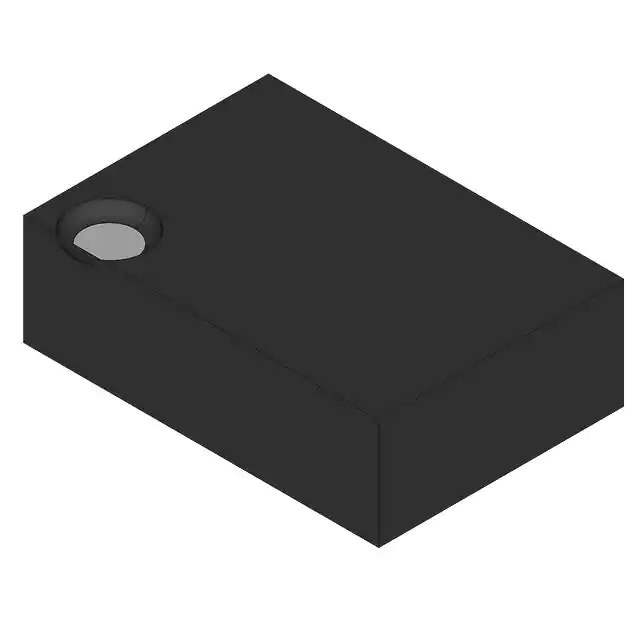

LM26LVCISD-150 Real Image
Same model may have multiple batches, images only for reference.

LM26LVCISD-150

Part No LM26LVCISD-150
Manufacturer National Semiconductor (TI)
Catalog Temperature Sensors - Thermostats - Solid State
Description SINGLE TRIP POINT SWITCH/DIGITAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Temperature Sensors - Thermostats - Solid State
Mfr National Semiconductor (TI)
Series Automotive, AEC-Q100
Package Bulk
Product Status Active
Trip Temperature Threshold Hot
Switching Temperature 150°C
Accuracy ±2.2°C
Current - Output (Max) 7mA
Output Type Open Drain, Push-Pull
Output Active High, Active Low
Output Function OverTemp, /OverTemp, VTemp
Selectable Hysteresis No
Features Trip Test
Voltage - Supply 1.6 V ~ 5.5 V
Current - Supply 8µA
Temperature Range - Operating -50°C ~ 150°C
Mounting Type Surface Mount
Package / Case 6-WDFN Exposed Pad
Supplier Device Package 6-WSON (2.2x2.5)
Standard Package 485 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 615190-LM26LVCISD-150
Ultra Librarian 3D Model Ultra Librarian LM26LVCISD-150 CAD Model

Description

The LM26LVCISD-150 is a solid-state thermostat temperature sensor designed for automotive applications.

  • Trip Test Function: true
  • Temperature Range: -50°C to 150°C
  • Output Type: open drain and push-pull
  • Outputs: active high and active low
  • Switching Temperature: 150°C
  • Current Supply: 8µA
  • Functions: overtemp and VTemp output
  • Maximum Output Current: 7mA
  • Accuracy: ±2.2°C
  • Package: 6-WDFN exposed pad
  • Mounting: surface mount
  • Manufacturer: National Semiconductor (TI)
  • Status: active
