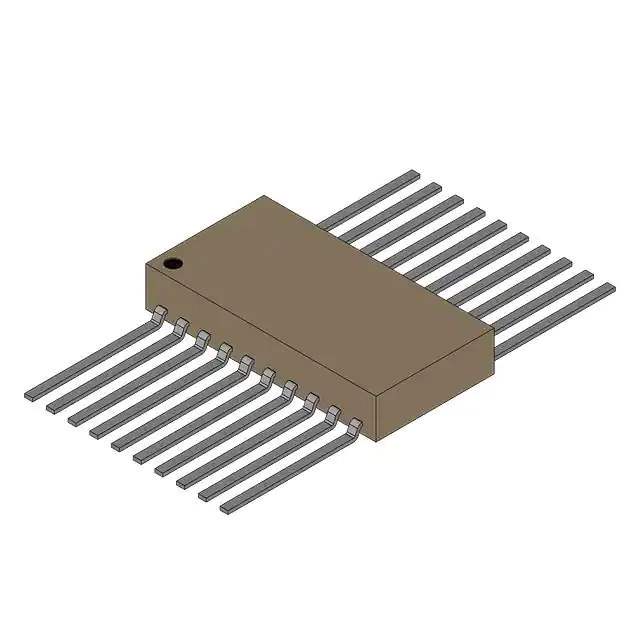

54LS244FMQB Real Image
Same model may have multiple batches, images only for reference.

54LS244FMQB

Part No 54LS244FMQB
Manufacturer National Semiconductor (TI)
Catalog Logic - Buffers, Drivers, Receivers, Transceivers
Description IC BUFF NON-INVERT 5.5V 20CFLTPK
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Buffers, Drivers, Receivers, Transceivers
Mfr National Semiconductor (TI)
Series 54LS
Package Bulk
Product Status Active
Logic Type Buffer, Non-Inverting
Number of Elements 2
Number of Bits per Element 4
Input Type Schmitt Trigger
Output Type Tri-State, Non-Inverted
Current - Output High, Low 12mA, 12mA
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 20-CFlatpack
Supplier Device Package 20-CFlatpack
Base Product Number 54LS244
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 907416-54LS244FMQB
Ultra Librarian 3D Model Ultra Librarian 54LS244FMQB CAD Model

Description

The 54LS244FMQB is a logic buffer integrated circuit (IC) designed for buffering and driving signals in digital systems and manufactured by National Semiconductor (TI).

  • Functionality: Non-inverting buffer
  • Output Type: Tri-State
  • Buffer Elements: 2
  • Bits per Element: 4
  • Supply Voltage Range: 4.5V to 5.5V
  • Current Output Capability: 12mA for both high and low states
  • Mounting Type: Surface Mount
  • Package: 20-CFlatpack
  • Quantity per Package: 1 piece
  • Packaging: Bulk
  • Operating Temperature Range: -55°C to 125°C
  • Product Status: Active
