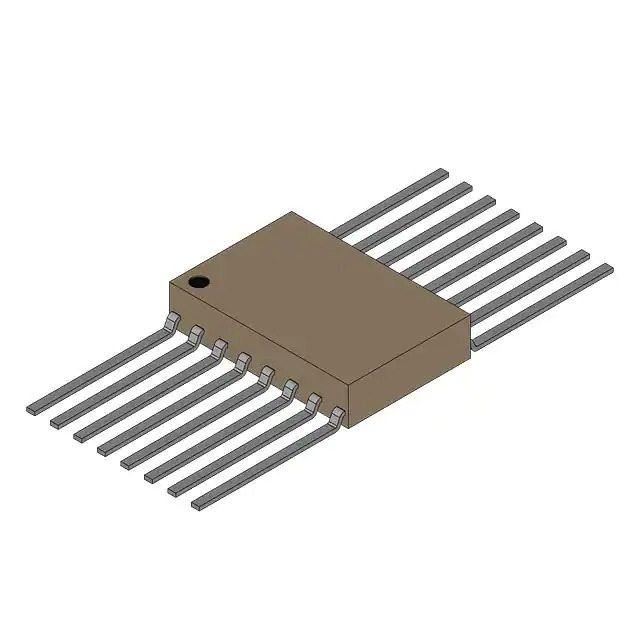

54F109FMQB National Semiconductor (TI)
Same model may have multiple batches, images only for reference.

54F109FMQB

Part No 54F109FMQB
Manufacturer National Semiconductor (TI)
Catalog Logic - Flip Flops
Description J-K FLIP-FLOP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Flip Flops
Mfr National Semiconductor
Series F109
Package Bulk
Product Status Active
Function Set(Preset) and Reset
Type JK Type
Output Type Complementary
Number of Elements 2
Number of Bits per Element 1
Clock Frequency 70 MHz
Max Propagation Delay @ V, Max CL 10.5ns @ 5V, 50pF
Trigger Type Positive Edge
Current - Output High, Low 1mA, 20mA
Voltage - Supply 4.5V ~ 5.5V
Current - Quiescent (Iq) 17 mA
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount
Supplier Device Package 16-CFlatPack
Package / Case 16-CFlatpack
Base Product Number 54F109
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1377527-54F109FMQB
Ultra Librarian 3D Model Ultra Librarian 54F109FMQB CAD Model

Description

The 54F109FMQB is a JK type flip flop integrated circuit (IC) manufactured by National Semiconductor.

  • IC Category: Logic
  • Function: Flip Flops
  • Temperature Range: -55°C to 125°C
  • Clock Frequency: 70 MHz
  • Voltage Supply: 4.5V to 5.5V
  • Output Signal: Complementary
  • Propagation Delay: 10.5ns @ 5V, 50pF
  • Package: 16-CFlatpack
  • Mounting Type: Surface Mount
