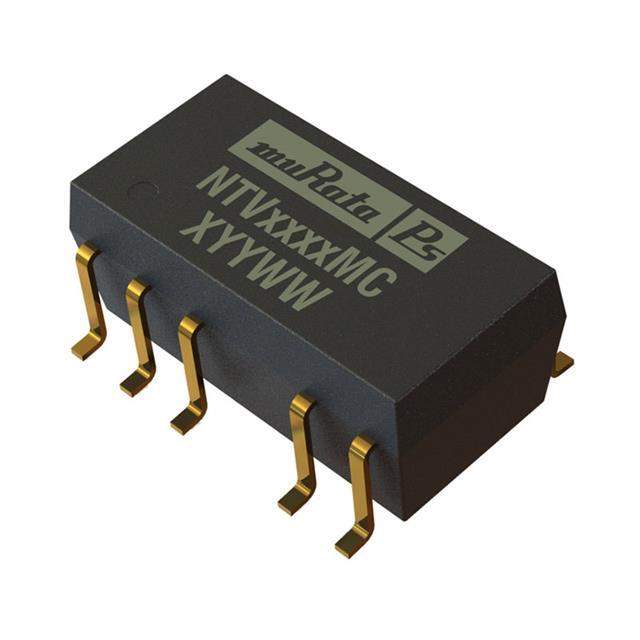

NTV1212MC Real Image
Same model may have multiple batches, images only for reference.

NTV1212MC

Part No NTV1212MC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 12VIN 2-OUT 12V/-12V 0.042A/-0.042A 1W 10-Pin Mini-SMD Tube / CONV DC/DC 1W 12VIN 12V DL 3KV
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Murata Power Solutions Inc.
Series NTV
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA, 42mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Features SCP
Mounting Style SMD/SMT
Package 22-SMD Module (10 Leads)
Size / Dimension 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 80%
Power (Watts) - Max 1W
Win Source Part Number 025838-NTV1212MC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name NTV1212
Introduction Date March 10, 2008
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NTV1212MC CAD Model

Description

The Murata Power Solutions Inc. NTV series DC-DC converter module is designed for ITE (Commercial) applications.

  • Application: ITE (Commercial)
  • Isolation Voltage: 3kV
  • Maximum Output Current: 42mA @ 12V and -12V
  • Power Rating: 1W
  • Efficiency: 80%
  • Operating Temperature Range: -40°C to 85°C
  • Mounting Style: Surface Mountable
  • Size: 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm)
  • Packaging: tube
  • Feature: SCP
  • Popularity: high popularity
