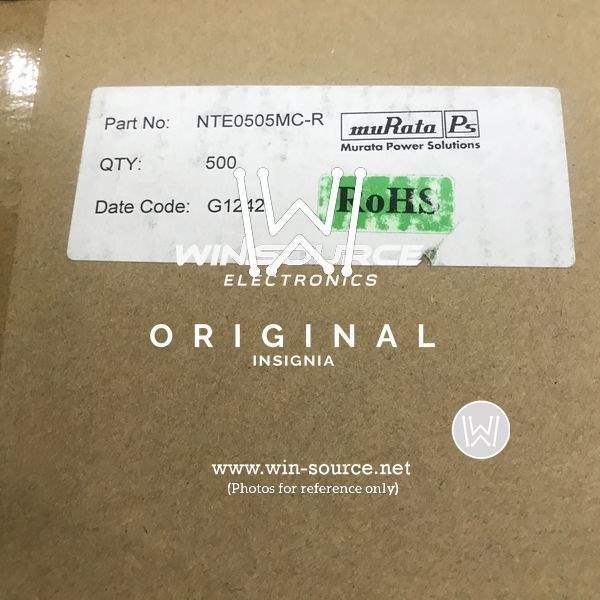

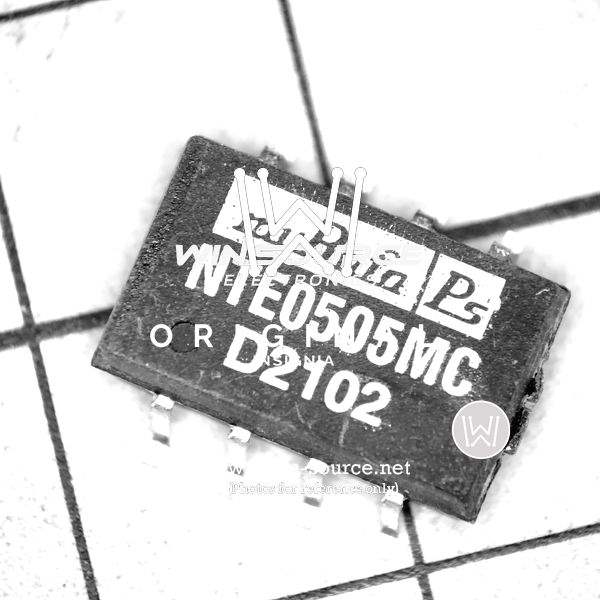

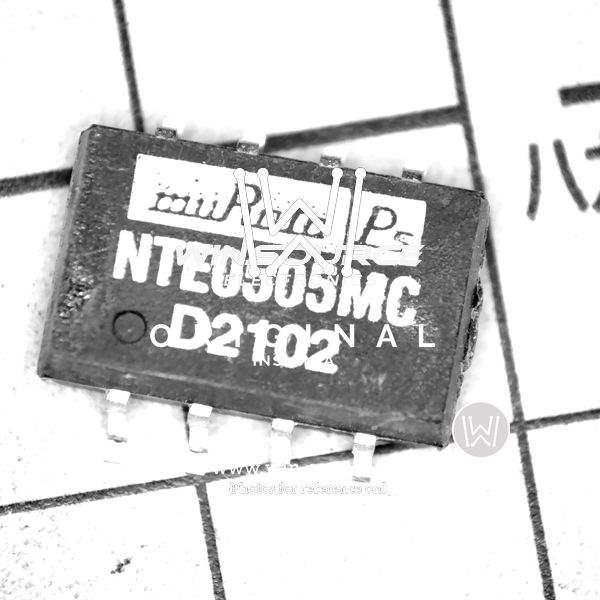

NTE0505MC-R Real Image NTE0505MC-R label picture NTE0505MC-R label picture 2 NTE0505MC-R real image NTE0505MC-R Real Image1 NTE0505MC-R Real Image2
Same model may have multiple batches, images only for reference.
NTE0505MC-R Real Image NTE0505MC-R label picture NTE0505MC-R label picture 2 NTE0505MC-R real image NTE0505MC-R Real Image1 NTE0505MC-R Real Image2
NTE0505MC-R Real Image NTE0505MC-R label picture NTE0505MC-R label picture 2 NTE0505MC-R real image NTE0505MC-R Real Image1 NTE0505MC-R Real Image2
Same model may have multiple batches, images only for reference.

NTE0505MC-R

Part No NTE0505MC-R
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 5VIN 1-OUT 5V 0.2A 1W 8-Pin SMD T/R / DC/DC SM 1W 5-5V SINGLE 1KV
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Murata Power Solutions Inc.
Series NTE
Packaging Reel(TR)
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Mounting Style SMD/SMT
Package 14-SMD Module (8 Leads)
Size / Dimension 0.50" L x 0.30" W x 0.26" H (12.7mm x 7.6mm x 6.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 68%
Power (Watts) - Max 1W
Win Source Part Number 004195-NTE0505MC-R
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name NTE0505MC-R
Introduction Date March 07, 2008
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NTE0505MC-R CAD Model

Description

The Murata Power Solutions Inc. NTE0505MC-R Isolated Module is a high-quality power supply that is perfect for ITE (Commercial) applications.

  • Mounting Style: SMD/SMT
  • Outputs: one
  • Voltage Output 1: 5V
  • Voltage Isolation: 1kV (1000V)
  • Efficiency: 68%
  • Package: 14-SMD Module (8 Leads), with a dimension of 0.50" L x 0.30" W x 0.26" H (12.7mm x 7.6mm x 6.6mm)
  • Current Output: 200mA
  • Voltage Input Range: 4.5V to 5.5V
