Same model may have multiple batches, images only for reference.

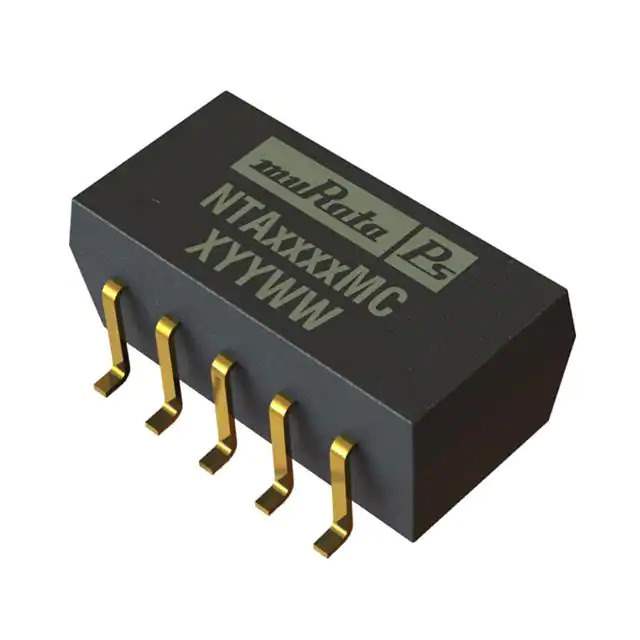

NTA0509MC Real Image
Same model may have multiple batches, images only for reference.

NTA0509MC

Part No NTA0509MC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NTA (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Max) 55mA, 55mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Surface Mount
Package / Case 18-SMD Module, 10 Leads
Size / Dimension 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm)
Base Product Number NTA05
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649612-NTA0509MC
Ultra Librarian 3D Model Ultra Librarian NTA0509MC CAD Model

Description

The NTA0509MC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NTA
  • Application: Power supplies in board mount applications
  • Voltage Isolation: 1 kV
  • Outputs: Two outputs
  • Maximum Output Current: 55mA each
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltages: 9V and -9V
  • Efficiency: 78%
  • Suitable for: ITE (Commercial) applications
  • Package: 18-SMD module
  • Operating Temperature Range: -40°C to 85°C
