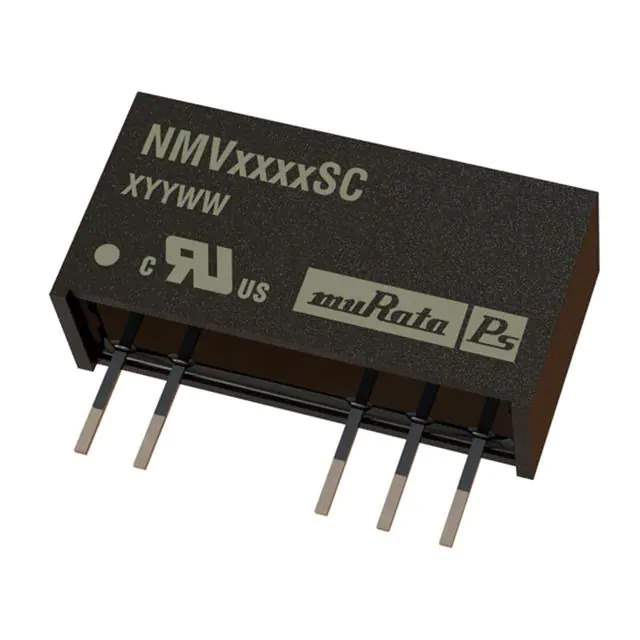

NMV1512SC Real Image
Same model may have multiple batches, images only for reference.

NMV1512SC

Part No NMV1512SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMV (1W)
Package Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 13.5V
Voltage - Input (Max) 16.5V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA, 42mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 75%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Base Product Number NMV15
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649217-NMV1512SC
Ultra Librarian 3D Model Ultra Librarian NMV1512SC CAD Model

Description

The NMV1512SC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NMV
  • Application: Power Supplies, Board Mount
  • Package: Tube
  • Dimensions: 0.77" L x 0.24" W x 0.39" H
  • Voltage Isolation: 3 kV
  • Outputs: Two
  • Maximum Output Current: 42mA each
  • Input Voltage Range: 13.5V to 16.5V
  • Output Voltages: 12V and -12V
  • Efficiency: 75%
  • Temperature Range: -40°C to 85°C
  • Application: ITE (Commercial)
