Same model may have multiple batches, images only for reference.

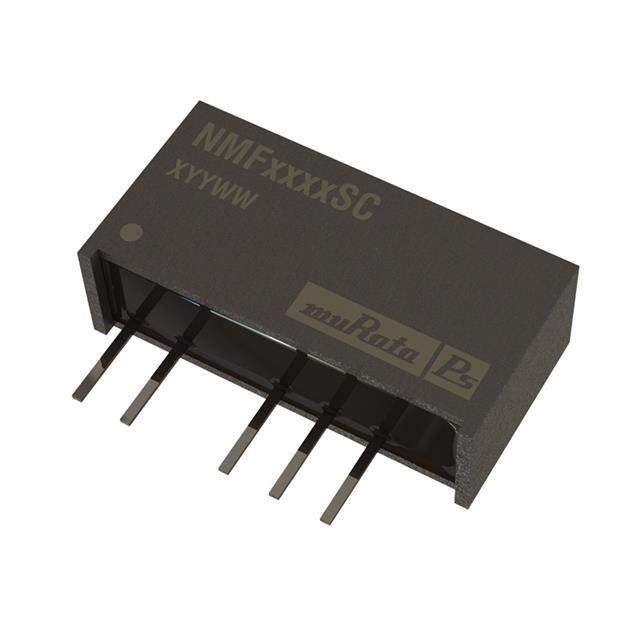

NMF1215SC Real Image
Same model may have multiple batches, images only for reference.

NMF1215SC

Part No NMF1215SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 12VIN 15V SIP SGL / Module DC-DC 12VIN 1-OUT 15V 0.067A 1W 5-Pin SIP
Datasheet
NMF1215SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NMF
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 11.4V
Voltage Input MAX 12.6V
Voltage - Output 1 15V
Current - Output (Maximum) 67mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Operating Temperature Range 0°C ~ 70°C
Efficiency 62%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Win Source Part Number 790748-NMF1215SC
Popularity Medium
Supply and Demand Status Limited
Family Name NMF
Introduction Date February 29, 2008
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NMF1215SC CAD Model

Description

The Murata Power Solutions Inc. NMF1215SC is an isolated module DC-DC converter.

  • Applications: ITE (Commercial)
  • Power Output: 1W
  • Efficiency: 62%
  • Output Voltage: 15V
  • Maximum Output Current: 67mA
  • Input Voltage Range: 11.4V to 12.6V
  • Package: 7-SIP module, 5 leads
  • Size: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
  • Isolation Voltage: 1kV (1000V)
  • Packaging: Reel
