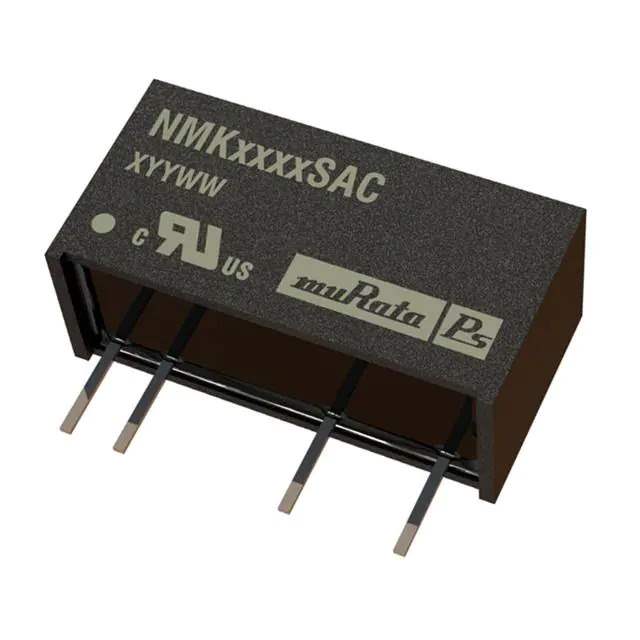

NMK1205SAC Real Image
Same model may have multiple batches, images only for reference.

NMK1205SAC

Part No NMK1205SAC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMK (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 83%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm)
Base Product Number NMK12
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649178-NMK1205SAC
Ultra Librarian 3D Model Ultra Librarian NMK1205SAC CAD Model

Description

The NMK1205SAC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NMK
  • Application: Power Supplies, Commercial
  • Voltage Isolation: 3 kV
  • Number of Outputs: 1
  • Output Current (Max): 400mA
  • Input Voltage: 10.8V to 13.2V
  • Output Voltage: 5V
  • Efficiency: 83%
  • Mounting Type: Through Hole
  • Package Size: 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm)
  • Operating Temperature Range: -40°C to 85°C
  • Package: 7-SIP module with 4 leads
  • Product Status: Active
  • Standard Package: 25 pcs
