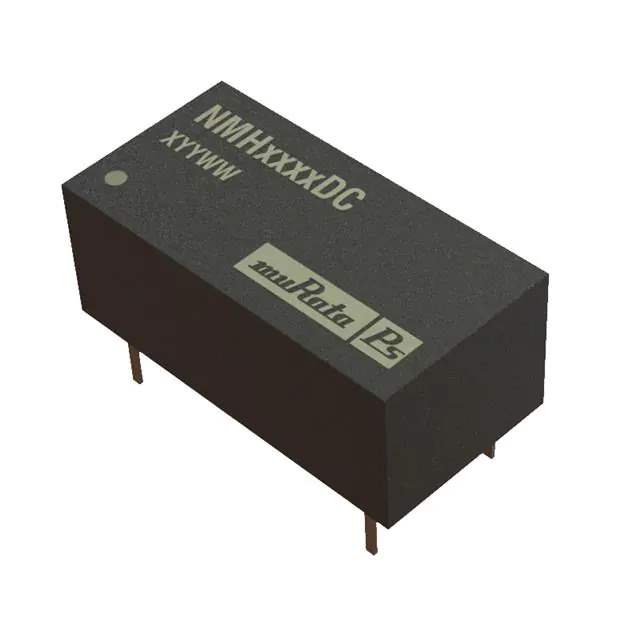

NMH1212DC Real Image
Same model may have multiple batches, images only for reference.

NMH1212DC

Part No NMH1212DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMH (2W)
Package Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 83mA, 83mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 84%
Mounting Type Through Hole
Package / Case 14-DIP Module, 6 Leads
Size / Dimension 0.77" L x 0.39" W x 0.30" H (19.6mm x 9.9mm x 7.6mm)
Base Product Number NMH12
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 847726-NMH1212DC
Ultra Librarian 3D Model Ultra Librarian NMH1212DC CAD Model

Description

The NMH1212DC is a 2W isolated module power supply from Murata Power Solutions Inc.

  • Series: NMH
  • Application: Power Supplies - Board Mount DC-DC Converters
  • Package: Tube
  • Size: 0.77" L x 0.39" W x 0.30" H
  • Voltage Isolation: 1 kV
  • Maximum Output Current: 83mA
  • Input Voltage Range: 10.8V to 13.2V
  • Output Voltage: 12V, -12V
  • Efficiency: 84%
  • Application: ITE (Commercial)
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
  • Product Status: Last Time Buy
  • Standard Package: 25 pcs
