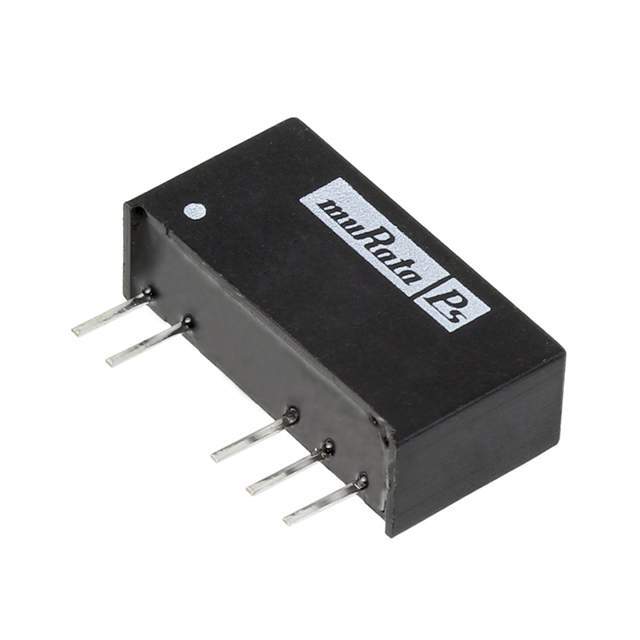

NMH1205SC Murata Power Solutions Inc.
Same model may have multiple batches, images only for reference.

NMH1205SC

Part No NMH1205SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 2W 12VIN 5VOUT SIP DL / Module DC-DC 12VIN 2-OUT 5V/-5V 0.2A/-0.2A 2W 5-Pin SIP Module Tube
Datasheet
NMH1205SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NMH
Packaging Tube
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 10.8V
Voltage Input MAX 13.2V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Maximum) 200mA, 200mA
Power (Watts) 2W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Operating Temperature Range -40°C ~ 85°C
Efficiency 80%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Win Source Part Number 790751-NMH1205SC
Popularity Medium
Supply and Demand Status Limited
Family Name NMH1205
Introduction Date December 23, 2008
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NMH1205SC CAD Model

Description

The NMH1205SC isolated module is a DC-DC converter.

  • Series: NMH
  • Power Output: 2 watts
  • Voltage-Isolation: 1kV
  • Output 1 Voltage: 5V
  • Output 1 Current: 200mA
  • Output 2 Voltage: -5V
  • Output 2 Current: 200mA
  • Efficiency: 80%
  • Temperature Range: -40°C to 85°C
  • Package Type: 7-SIP module, 5 leads
  • Mounting: Through Hole
  • Applications: Commercial Information Technology Equipment
