Same model may have multiple batches, images only for reference.

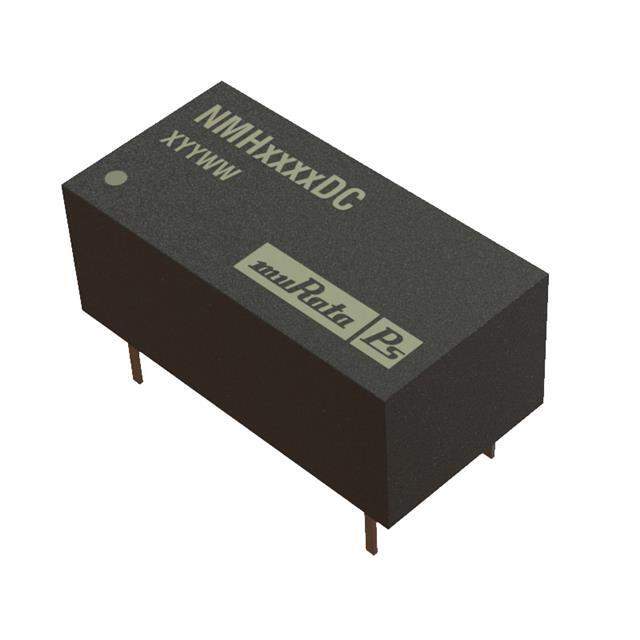

NMH0515DC Real Image
Same model may have multiple batches, images only for reference.

NMH0515DC

Part No NMH0515DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 2W 5VIN 15VOUT DIP DL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Power Solutions Inc.
Standard Package 25
Category Power Supplies - Board Mount
Family DC DC Converters
Series NMH
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 67mA 67mA
Power (Watts) - Manufacture Series 2W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 14-DIP Module (6 Leads)
Size / Dimension 0.77" L x 0.39" W x 0.30" H (19.6mm x 9.9mm x 7.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 84%
Power (Watts) - Max 2W
Catalog NMH Series
Win Source Part Number 045299-NMH0515DC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NMH0515DC CAD Model

Description

The NMH series NMH0515DC is a DC DC converter type power supply with a 14-DIP module (6 leads) package.

  • Voltage Isolation: 1kV (1000V)
  • Outputs: Two
  • Voltage: 15V and -15V
  • Efficiency: 84%
  • Maximum Power: 2W
  • Application: ITE (Commercial)
  • Supply and Demand Status: Limited
