Same model may have multiple batches, images only for reference.

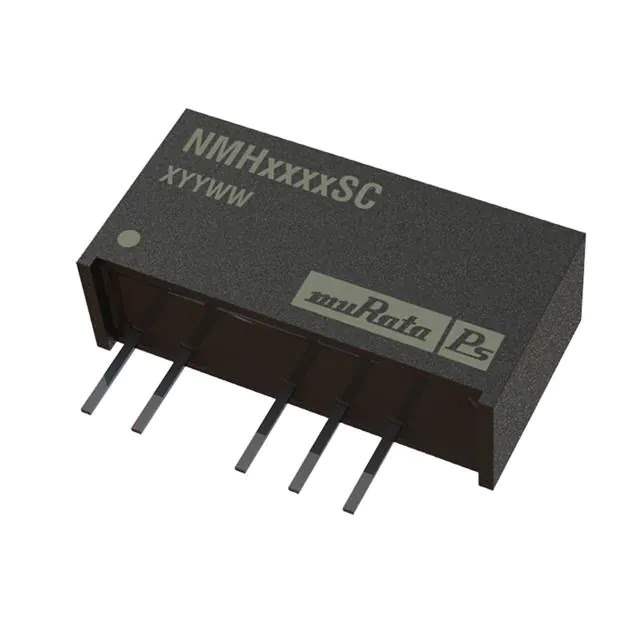

NMH0505SC Real Image
Same model may have multiple batches, images only for reference.

NMH0505SC

Part No NMH0505SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMH (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 80%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Base Product Number NMH05
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649150-NMH0505SC
Ultra Librarian 3D Model Ultra Librarian NMH0505SC CAD Model

Description

The NMH0505SC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NMH
  • Application: power supplies in commercial applications
  • Voltage Isolation: 1 kV
  • Outputs: two
  • Maximum Output Current: 200mA each
  • Input Voltage Range: from 4.5V to 5.5V
  • Output Voltages: 5V and -5V
  • Efficiency: 80%
  • Mounting Type: through hole
  • Package Size: 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
  • Operating Temperature Range: -40°C to 85°C
  • Package: 7-SIP module with 5 leads
  • Product Status: active
  • Standard Package: 25 pcs
