Same model may have multiple batches, images only for reference.

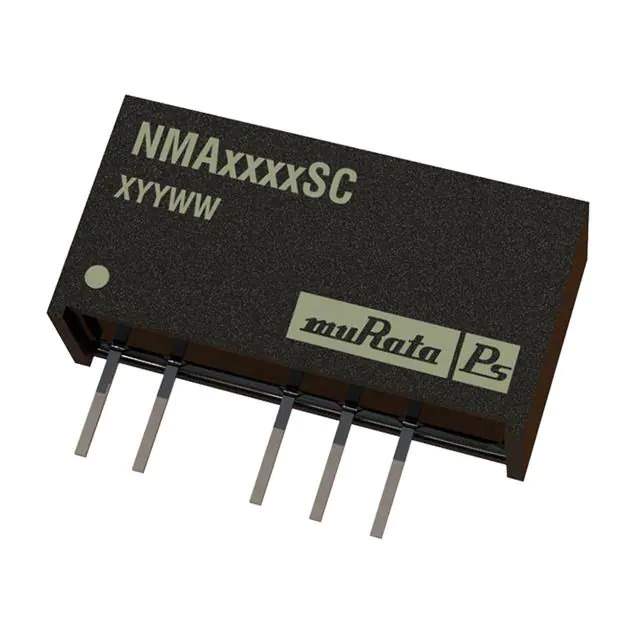

NMA1215SC Real Image
Same model may have multiple batches, images only for reference.

NMA1215SC

Part No NMA1215SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMA (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 33mA, 33mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 76%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
Base Product Number NMA12
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649116-NMA1215SC
Ultra Librarian 3D Model Ultra Librarian NMA1215SC CAD Model

Description

The NMA1215SC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc. It is part of the NMA series and is designed for power supplies in board mount applications.

  • Power: 1W
  • Size: 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
  • Voltage Isolation: 1 kV
  • Number of Outputs: 2
  • Maximum Output Current: 33mA (per output)
  • Input Voltage: 10.8V to 13.2V
  • Output Voltage: 15V and -15V
  • Efficiency: 76%
  • Package: 7-SIP module, 5 leads
  • Mounting: Through-Hole
  • Operating Temperature: -40°C to 85°C
  • REACH: Compliant
  • HTSUS Code: 8504.40.9580
  • Application: ITE (Commercial)
