Same model may have multiple batches, images only for reference.

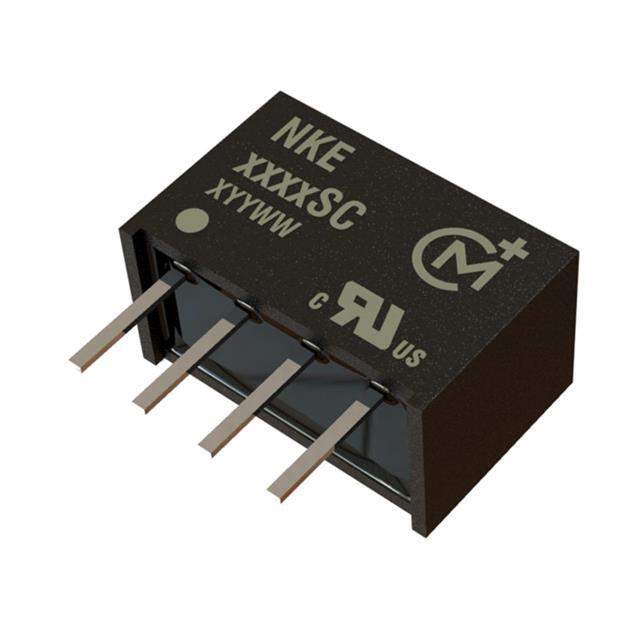

NKE0505SEC Real Image
Same model may have multiple batches, images only for reference.

NKE0505SEC

Part No NKE0505SEC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC TH 1W 5-5V SIP SINGLE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Power Solutions Inc.
Standard Package 40
Category Power Supplies - Board Mount
Family DC DC Converters
Series NKE
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 7-DIP Module (4 Leads)
Size / Dimension 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 77%
Power (Watts) - Max 1W
Catalog NKE Series
Win Source Part Number 045244-NKE0505SEC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NKE0505SEC CAD Model

Description

The NKE0505SEC is an isolated module DC DC converter manufactured by Murata Power Solutions Inc.

  • Manufacturer: Murata Power Solutions Inc.
  • Voltage Isolation: 3kV (3000V)
  • Maximum Output Current: 200mA
  • Power: 1W
  • Efficiency: 77%
  • Input Voltage: 4.5V to 5.5V
  • Output Voltage: 5V
  • Package: 7-DIP module (4 leads)
  • Dimensions: 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm)
  • Application: ITE (Commercial)
  • Series: NKE series
  • Supply and Demand Status: Limited
