Same model may have multiple batches, images only for reference.

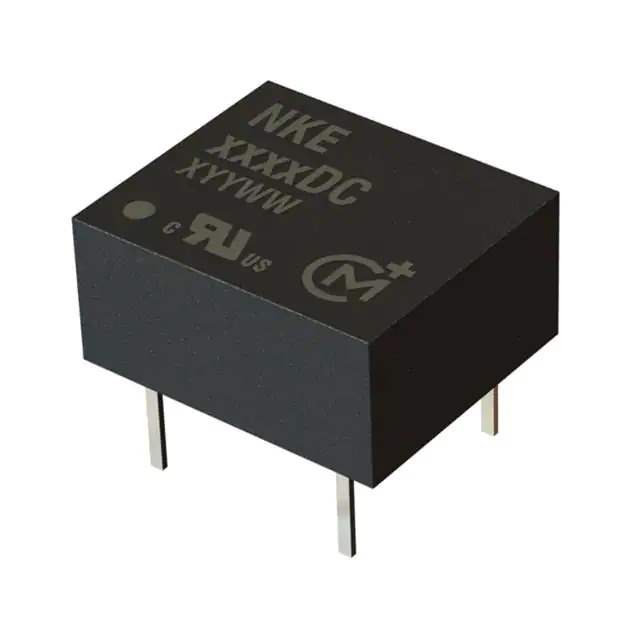

NKE0305DC Real Image
Same model may have multiple batches, images only for reference.

NKE0305DC

Part No NKE0305DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NKE (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 3V
Voltage - Input (Max) 3.6V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 75%
Mounting Type Through Hole
Package / Case 8-DIP Module, 4 Leads
Size / Dimension 0.45" L x 0.39" W x 0.21" H (11.5mm x 9.8mm x 5.4mm)
Base Product Number NKE03
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648814-NKE0305DC
Ultra Librarian 3D Model Ultra Librarian NKE0305DC CAD Model

Description

The NKE0305DC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NKE
  • Applications: power supplies in board mount applications
  • Size: 0.45" L x 0.39" W x 0.21" H (11.5mm x 9.8mm x 5.4mm)
  • Voltage Isolation: 3 kV
  • Number of Outputs: single
  • Maximum Output Current: 200mA
  • Input Voltage Range: from 3V to 3.6V
  • Output Voltage: 5V
  • Efficiency: 75%
  • Package: 8-DIP module with 4 leads
  • Mounting: through-hole
  • Operating Temperature: -40°C to 85°C
  • REACH: compliant
  • HTSUS Code: 8504.40.9580
  • Applications: ITE (Commercial)
