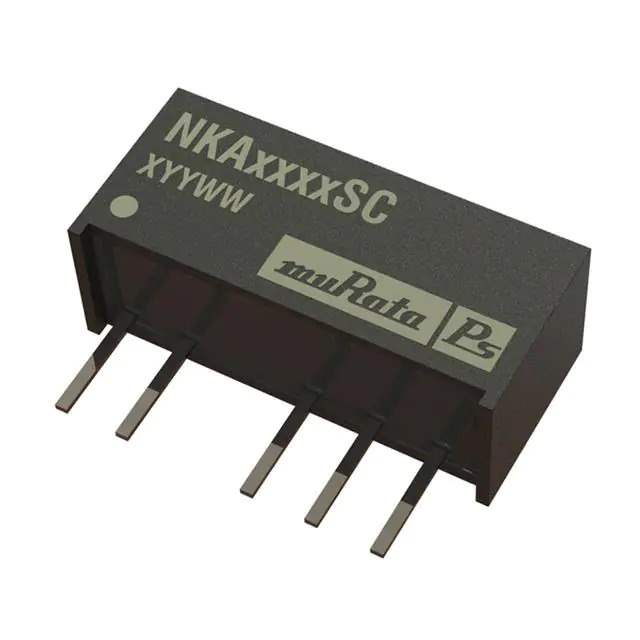

Same model may have multiple batches, images only for reference.

NKA0312SC

Name: NKA0312SC
Brand: Murata Power Solutions Inc.
SKU: 648810
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	NKA0312SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 1W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NKA (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	3V
Voltage - Input (Max)	3.6V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	42mA, 42mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	78%
Mounting Type	Through Hole
Package / Case	6-SIP Module, 5 Leads
Size / Dimension	0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
Base Product Number	NKA03
Standard Package	30 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	648810-NKA0312SC
Ultra Librarian 3D Model	Ultra Librarian NKA0312SC CAD Model

Alternative Products

Description

The 648810-NKA0312SC is a power supply DC-DC converter module from Murata Power Solutions Inc.

Series: NKA
Module Type: 1W isolated
Applications: ITE (Commercial)
Package Size: 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
Mounting Type: through-hole
Number of Outputs: 2
Maximum Output Current: 42mA each
Input Voltage Range: from 3V to 3.6V
Output Voltages: 12V and -12V
Efficiency: 78%
Voltage Isolation: 3 kV
Operating Temperature: -40°C to 85°C
Package: 6-SIP module, 5 leads package
Product Status: active
