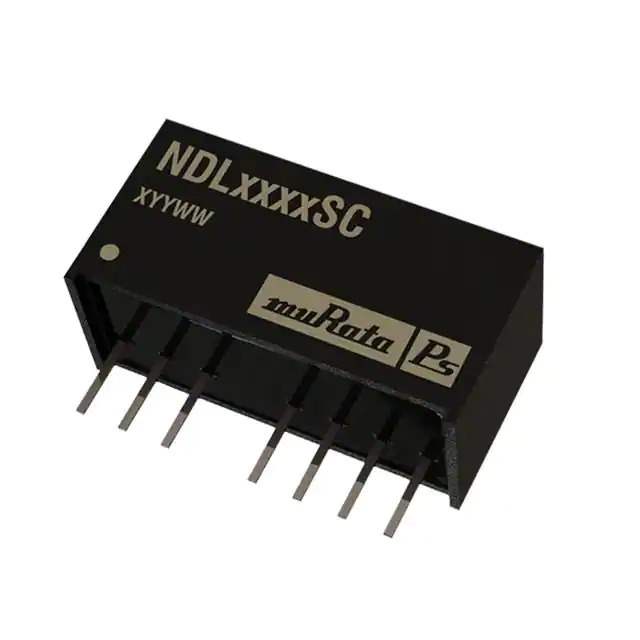

NDL4805SC Real Image
Same model may have multiple batches, images only for reference.

NDL4805SC

Part No NDL4805SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NDL (2W)
Package Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 72V
Voltage - Output 1 5V
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 73%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number NDL48
Standard Package 23 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648182-NDL4805SC
Ultra Librarian 3D Model Ultra Librarian NDL4805SC CAD Model

Description

The NDL4805SC is a 2W isolated module DC-DC converter from the NDL series by Murata Power Solutions Inc.

  • Series: NDL
  • Applications: Board Mount Power Supply
  • For Use With/Related Products: Commercial Information Technology Equipment
  • Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
  • Number of Outputs: 1
  • Voltage - Output: 5V
  • Current - Output (Max): 400mA
  • Voltage - Input (Min): 36V
  • Voltage - Input (Max): 72V
  • Efficiency: 73%
  • Voltage - Isolation: 1kV
  • Mounting Type: Through Hole
  • Package / Case: 8-SIP Module, 7 Leads
  • Operating Temperature: -40°C ~ 85°C
  • Lifecycle Status: Last Time Buy
