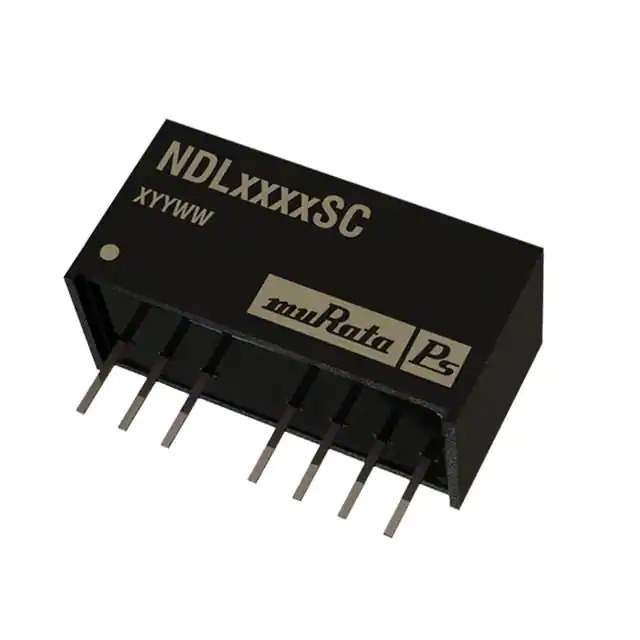

NDL0509SC Real Image
Same model may have multiple batches, images only for reference.

NDL0509SC

Part No NDL0509SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 9V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NDL (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 9V
Current - Output (Max) 222mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 71%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number NDL05
Standard Package 23 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648176-NDL0509SC
Ultra Librarian 3D Model Ultra Librarian NDL0509SC CAD Model

Description

The NDL0509SC is a 2W isolated module DC-DC converter manufactured by Murata Power Solutions Inc.

  • Series: NDL
  • Application: Power Supplies, Board Mount
  • Package: Tube
  • Dimensions: 0.86" L x 0.36" W x 0.44" H
  • Voltage Isolation: 1 kV
  • Output: Single
  • Maximum Output Current: 222mA
  • Input Voltage: 4.5V to 9V
  • Output Voltage: 9V
  • Efficiency: 71%
  • Application: ITE (Commercial)
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
