Same model may have multiple batches, images only for reference.

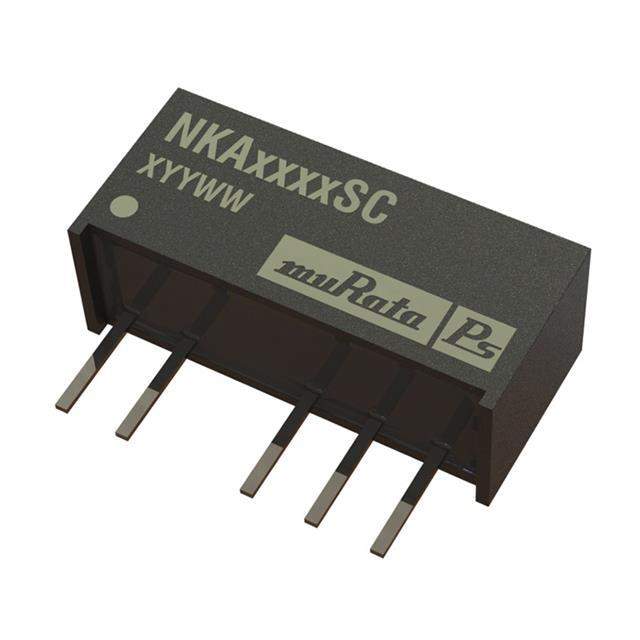

NKA0505SC Real Image
Same model may have multiple batches, images only for reference.

NKA0505SC

Part No NKA0505SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 5VIN 5VOUT SIP DL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Power Solutions Inc.
Standard Package 30
Category Power Supplies - Board Mount
Family DC DC Converters
Series NKA
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA 100mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 6-SIP Module (5 Leads)
Size / Dimension 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 70%
Power (Watts) - Max 1W
Catalog NKA Series
Win Source Part Number 045242-NKA0505SC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NKA0505SC CAD Model

Description

The Murata Power Solutions Inc. NKA Series is a power supply board mount component that is ideal for ITE (Commercial) applications.

  • Manufacturer: Murata Power Solutions Inc.
  • Series: NKA Series
  • Mounting Type: Through Hole
  • Voltage Isolation: 3kV (3000V)
  • Number of Outputs: 2
  • Voltage Output 1: 5V
  • Voltage Output 2: -5V
  • Efficiency: 70%
  • Power: 1W
  • Current Output: 100mA, 100mA
  • Operating Temperature: -40°C ~ 85°C
  • Package: 6-SIP Module (5 Leads)
  • Dimensions: 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
  • Supply and Demand Status: Limited
