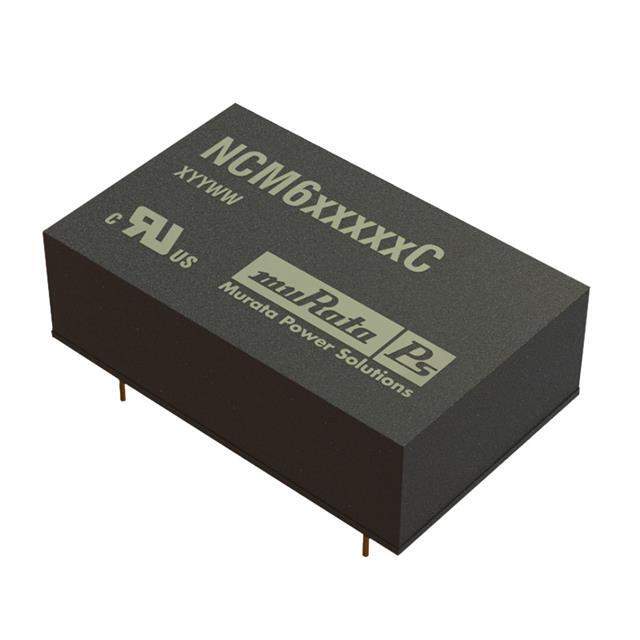

NCM6S4805EC Real Image
Same model may have multiple batches, images only for reference.

NCM6S4805EC

Part No NCM6S4805EC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 5V 6W / Module DC-DC 48VIN 1-OUT 5V 1.2A 6W 7-Pin
Datasheet
NCM6S4805EC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NCM6
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 18V
Voltage Input MAX 75V
Voltage - Output 1 5V
Current - Output (Maximum) 1.2A
Power (Watts) 6W
Voltage - Isolation 5.2kV (5200V)
Applications ITE (Commercial), Medical
Features Remote On/Off, OTP, SCP, UVLO
Operating Temperature Range -40°C ~ 85°C
Efficiency 78 ~ 83%
Mounting Style Through Hole
Package 24-DIP Module, 7 Leads
Dimension 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
Win Source Part Number 790560-NCM6S4805EC
Popularity Medium
Supply and Demand Status Limited
Family Name NCM6
Introduction Date March 28, 2014
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian NCM6S4805EC CAD Model

Description

The electronic component with the 790560-NCM6S4805EC is a 6W isolated module from Murata Power Solutions Inc.

  • Efficiency: 78-83%
  • Series: NCM6
  • Packaging: Tube
  • Mounting Style: Through-hole
  • Operating Temperature Range: -40°C to 85°C
  • Voltage Isolation: 5.2kV
  • Outputs: 1
  • Voltage: 5V
  • Current Output: 1.2A
  • Size: 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
  • Applications: ITE (Commercial), Medical
  • Supply: Limited
  • Popularity: Medium
