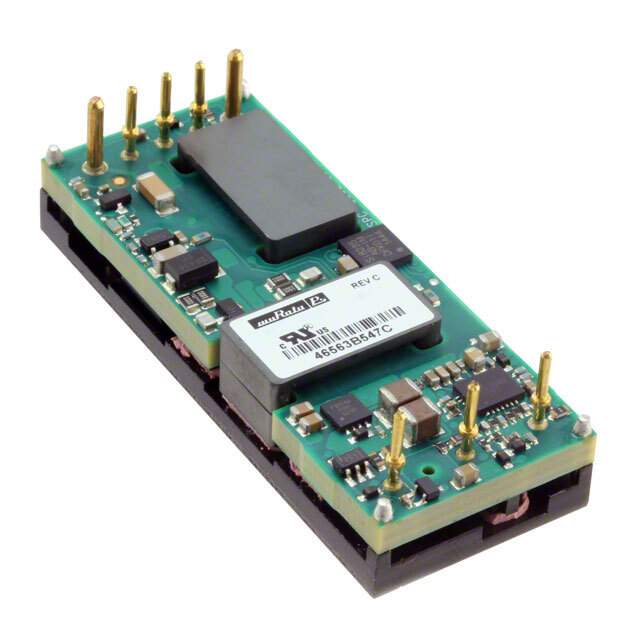

UWE-3.3/20-Q12NB-C Real Image
Same model may have multiple batches, images only for reference.

UWE-3.3/20-Q12NB-C

Part No UWE-3.3/20-Q12NB-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 66W / Isolated Module DC DC Converter 1 Output 3.3V 20A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 3.3V
Current - Output (Max) 20A
Power (Watts) 66 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 89%
Mounting Through Hole
Case / Package 8-DIP Module, 1/8 Brick
Size / Dimension 2.30" L x 0.90" W x 0.34" H (58.4mm x 22.9mm x 8.6mm)
Control Features Enable, Active Low
Base Product Number UWE-3.3
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Standard Package 42
Win Source Part Number 1336459-UWE-3.3/20-Q12NB-C
Ultra Librarian 3D Model Ultra Librarian UWE-3.3/20-Q12NB-C CAD Model

Description

The Murata Power Solutions Inc. UWE-3.3/20-Q12NB-C is an isolated module type DC-DC converter with a power of 66W and a remote On/Off, OCP, OTP, OVP, SCP, UVLO feature.

  • Voltage Isolation: 1.5kV
  • Efficiency: 89%
  • Temperature Range: -40°C to 85°C
  • Packaging: Tray
  • Package: 42
  • Mounting: Through a hole
  • Input Voltage: 9V to 36V
  • Output Voltage: 3.3V
  • Current Output: 20A
  • Application: ITE (Commercial)
  • MSL Level: 1 (unlimited)
  • HTSUS: 8504.40.9580
  • Base Product Number: UWE-3.3
  • RoHS: ROHS3 compliant
