Same model may have multiple batches, images only for reference.

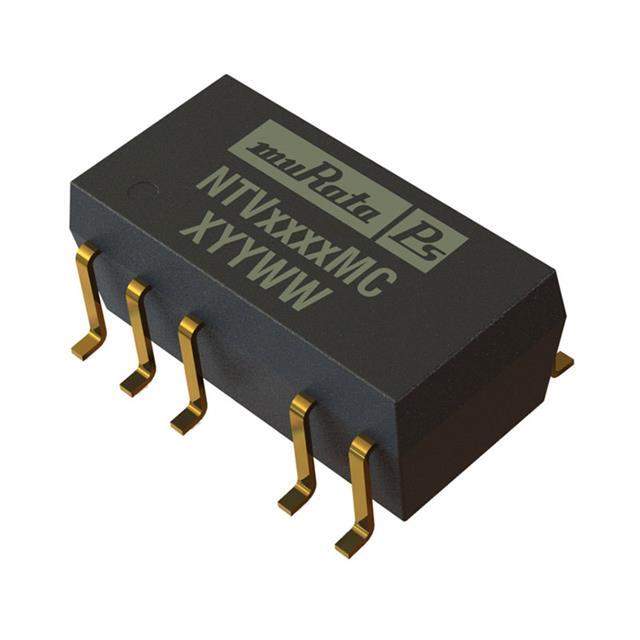

NTV0515MC-R Real Image
Same model may have multiple batches, images only for reference.

NTV0515MC-R

Part No NTV0515MC-R
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Reel - TR
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 33mA, 33mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 80%
Mounting Surface Mount
Case / Package 22-SMD Module, 10 Leads
Size / Dimension 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm)
Base Product Number NTV05
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Standard Package 500
Win Source Part Number 1335279-NTV0515MC-R
Ultra Librarian 3D Model Ultra Librarian NTV0515MC-R CAD Model

Description

The Murata Power Solutions Inc. NTV0515MC-R is a 1W isolated module DC-DC converter designed for ITE (commercial) applications.

  • Power: 1W
  • Application: ITE (commercial)
  • Package: 500
  • Voltage Isolation: 3 kV
  • Number of Outputs: 2
  • Maximum Current: 33mA
  • Voltage Output: 15V and -15V
  • Efficiency: 80%
  • Temperature Range: -40°C to 85°C
  • Mounting: surface mounted
  • Case/Package: 22-SMD module, 10 leads
  • Dimensions: 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm)
  • ROHS3 Compliance: ROHS3 compliant
  • ECCN: EAR99
