Same model may have multiple batches, images only for reference.

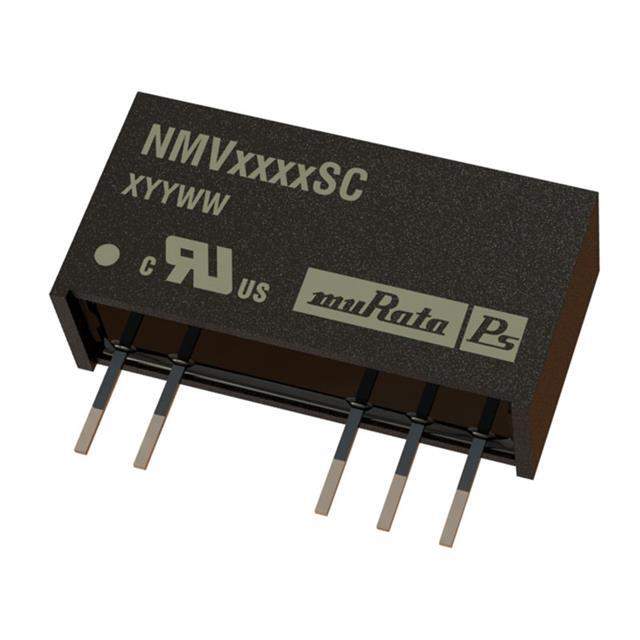

NMV1515SC Real Image
Same model may have multiple batches, images only for reference.

NMV1515SC

Part No NMV1515SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 13.5V - 16.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 13.5V
Voltage - Input (Max) 16.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 33mA, 33mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 77%
Mounting Through Hole
Case / Package 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Base Product Number NMV15
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-1610-5
Standard Package 25
Win Source Part Number 1335272-NMV1515SC
Ultra Librarian 3D Model Ultra Librarian NMV1515SC CAD Model

Description

The Murata Power Solutions Inc. NMV1515SC is an isolated module DC-DC converter that is ideal for use in power supplies for board mount applications.

  • Power: 1W
  • Efficiency: 77%
  • Voltage-isolation: 3kV
  • Outputs: Two
  • Current-output (Max): 33mA and 33mA
  • Voltage-input (Min): 13.5V
  • Voltage-input (Max): 16.5V
  • Voltage-output 1: 15V
  • Voltage-output 2: -15V
  • Case/Package: 7-SIP module, 5 leads
  • Temperature Range: -40°C to 85°C
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Standard Package: Contains 25 units
