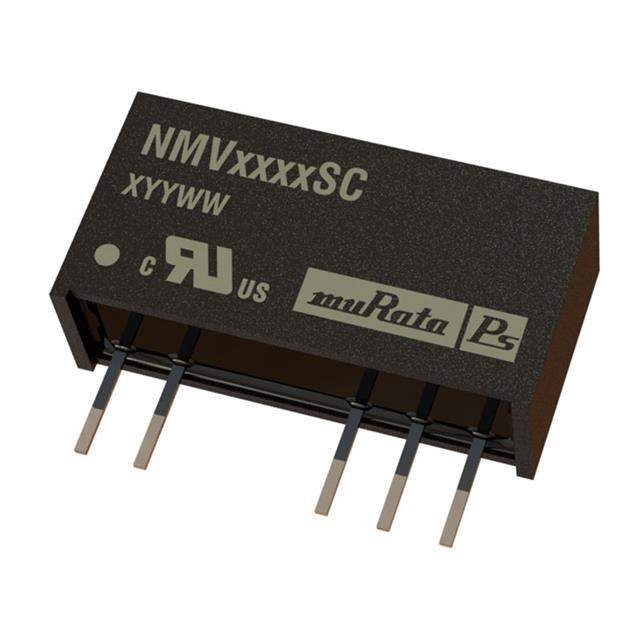

NMV1205SC Real Image
Same model may have multiple batches, images only for reference.

NMV1205SC

Part No NMV1205SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 10.8V - 13.2V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 71%
Mounting Through Hole
Case / Package 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Base Product Number NMV12
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-1597-5
Standard Package 25
Win Source Part Number 1335270-NMV1205SC
Ultra Librarian 3D Model Ultra Librarian NMV1205SC CAD Model

Description

The Murata Power Solutions Inc. NMV1205SC is a high-quality isolated module DC-DC converter that is ideal for use in a wide range of applications, including ITE (Commercial).

  • Supply and Demand Status: Balanced
  • Packaging: Tube
  • Size / Dimension: 0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
  • Voltage - Isolation: 3 kV
  • Number of Outputs: 2
  • Efficiency: 71%
  • Win Source Part Number: 1335270-NMV1205SC
