Same model may have multiple batches, images only for reference.

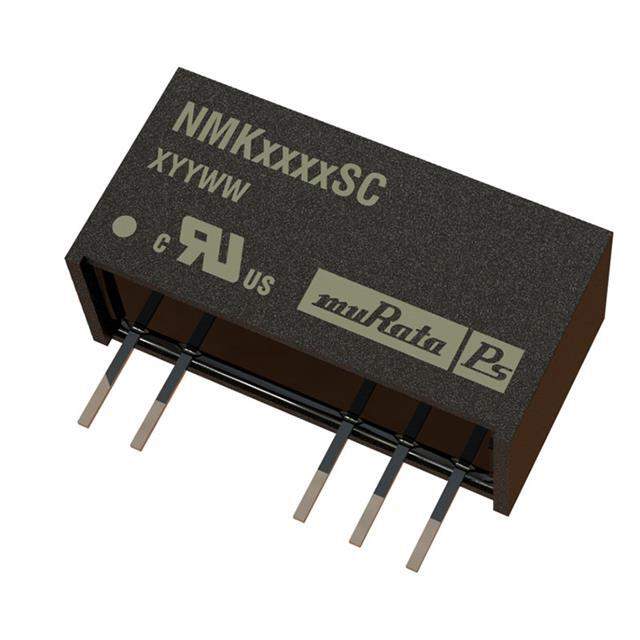

NMK2415SC Real Image
Same model may have multiple batches, images only for reference.

NMK2415SC

Part No NMK2415SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 21.6V - 26.4V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 67mA, 67mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 89%
Mounting Through Hole
Case / Package 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm)
Base Product Number NMK24
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-2352-5
Standard Package 25
Win Source Part Number 1335273-NMK2415SC
Ultra Librarian 3D Model Ultra Librarian NMK2415SC CAD Model

Description

The Murata Power Solutions Inc. NMK2415SC is an isolated module with a power of 2W.

  • Package: Tube
  • Mounting Type: Through hole
  • Outputs: Two
  • Output Voltage: 15V and -15V
  • Efficiency: 89%
  • Category: Power supplies - board mount - DC DC converters
  • Temperature Range: -40°C to 85°C
  • Base Product Number: NMK24
  • Voltage Isolation: 3kV
  • Standard Package: 25
  • Current Output Maximum: 67mA, 67mA
  • Voltage Input Range: 21.6V to 26.4V
  • Size/Dimension: 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm)
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8504.40.9580
