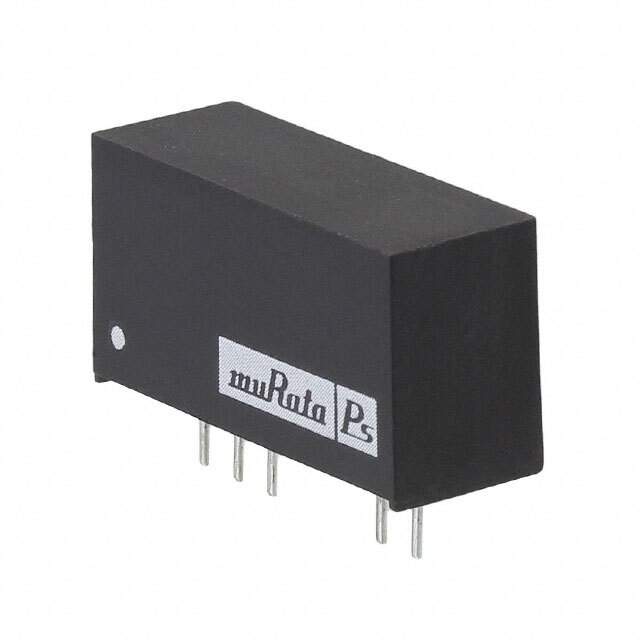

MEV1D0505SC Real Image
Same model may have multiple batches, images only for reference.

MEV1D0505SC

Part No MEV1D0505SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 85%
Mounting Through Hole
Case / Package 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Base Product Number MEV1D05
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-2265
Standard Package 25
Win Source Part Number 1335244-MEV1D0505SC
Ultra Librarian 3D Model Ultra Librarian MEV1D0505SC CAD Model

Description

The Murata Power Solutions Inc. MEV1D0505SC is an isolated module DC-DC converter designed for use in ITE (Commercial) applications.

  • Power Output: 1 W
  • Efficiency: 85 percent
  • Package: 7-SIP module
  • Leads: 5
  • Mounting Style: Through-hole
  • Voltage Isolation: 3 kV
  • Outputs: Two
  • Maximum Current Output: 100mA each
  • Voltage Input Range: 4.5V to 5.5V
  • Voltage Output 1: 5V
  • Voltage Output 2: -5V
  • Ideal for: ITE (Commercial) applications due to its high efficiency and voltage isolation rating
