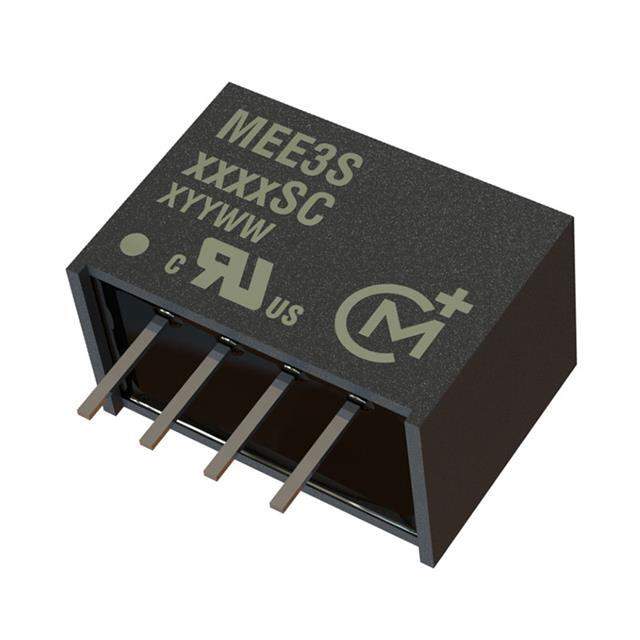

MEE3S0505SC Real Image
Same model may have multiple batches, images only for reference.

MEE3S0505SC

Part No MEE3S0505SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 3W / Isolated Module DC DC Converter 1 Output 5V 600mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 600mA
Power (Watts) 3 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 83%
Mounting Through Hole
Case / Package 4-SIP Module
Size / Dimension 0.56" L x 0.32" W x 0.40" H (14.2mm x 8.2mm x 10.2mm)
Base Product Number MEE3S05
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-2360-5
Standard Package 35
Win Source Part Number 1335256-MEE3S0505SC
Ultra Librarian 3D Model Ultra Librarian MEE3S0505SC CAD Model

Description

The Murata Power Solutions Inc. 1335256-MEE3S0505SC is an isolated module with through-hole mounting style and one output.

  • Application: ITE (Commercial)
  • Power Rating: 3W
  • Voltage Isolation: 1kV
  • Efficiency: 83%
  • Operating Temperature: -40°C to 85°C
  • Dimension: 0.56" L x 0.32" W x 0.40" H (14.2mm x 8.2mm x 10.2mm)
  • Package: 4-SIP module
  • Current Output: 600mA
  • Voltage Input: 4.5V to 5.5V
  • Standard Package: 35
  • ROHS3 Compliant: Yes
