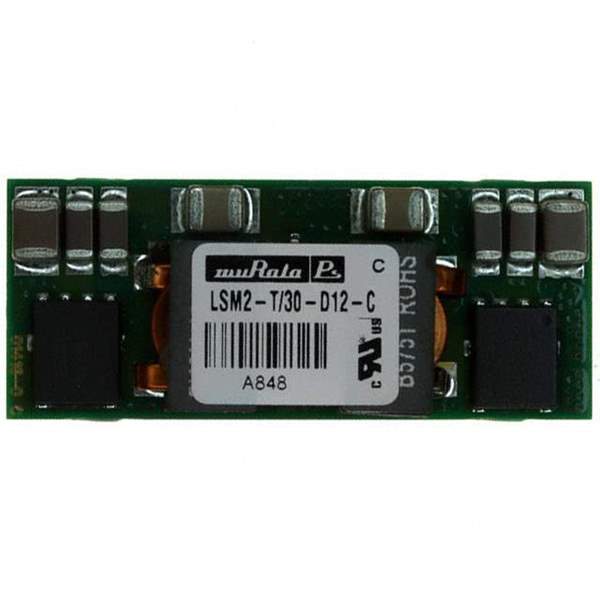

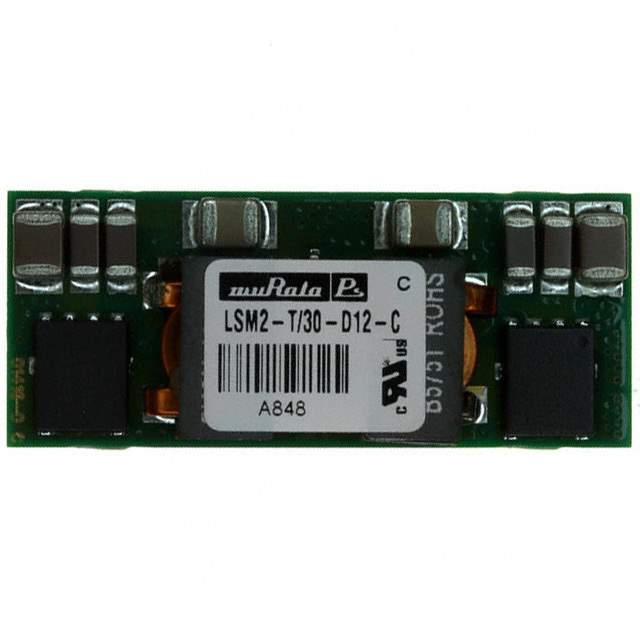

LSM2-T/30-D12-C Real Image
Same model may have multiple batches, images only for reference.

LSM2-T/30-D12-C

Part No LSM2-T/30-D12-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.8-5V 125W / Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 5V 30A 8.3V - 13.2V Input
Datasheet
LSM2-T/30-D12-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series LSM2
Package Tape & Reel
Product Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 8.3V
Voltage - Input (Max) 13.2V
Voltage - Output 1 0.8 ~ 5V
Current - Output (Max) 30A
Power (Watts) 125 W
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 94%
Mounting Type Surface Mount
Package / Case 7-SMD Module
Size / Dimension 1.30" L x 0.53" W x 0.34" H (33.0mm x 13.5mm x 8.6mm)
Control Features Enable, Active Low
Base Product Number LSM2-T
Standard Package 250
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1351669-LSM2-T/30-D12-C
Ultra Librarian 3D Model Ultra Librarian LSM2-T/30-D12-C CAD Model

Description

The LSM2 is a non-isolated PoL module power supply designed for ITE (Commercial) applications.

  • Features: Remote On/Off, OCP, SCP, and UVLO
  • Packaging: Tape & Reel
  • Package / Case: 7-SMD Module
  • Dimensions: 1.30" L x 0.53" W x 0.34" H (33.0mm x 13.5mm x 8.6mm)
  • Power Rating: 125W
  • Efficiency: 94%
  • Number of Outputs: 1
  • Maximum Current Output: 30A
  • Voltage - Input: 8.3V to 13.2V
  • Voltage - Output: 0.8V to 5V
  • Control Features: Enable, Active Low
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C ~ 85°C
  • MSL: 2 (1 Year)
  • Lifecycle Status: Obsolete
