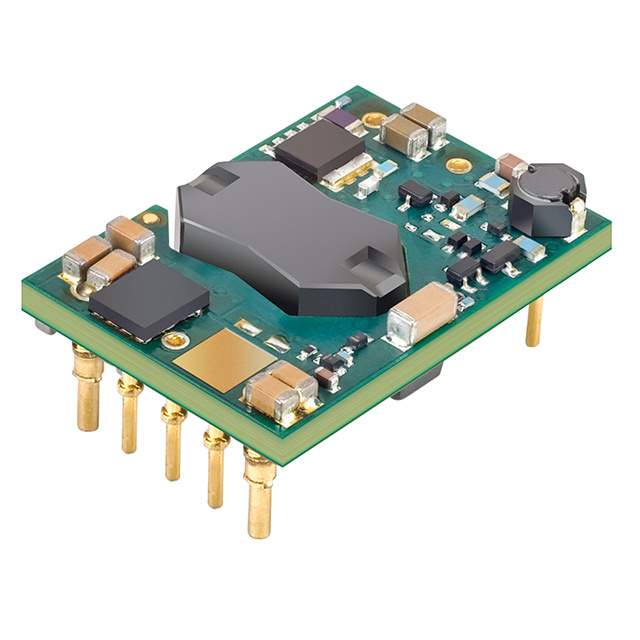

UWS-5/10-Q48NH-C Real Image
Same model may have multiple batches, images only for reference.

UWS-5/10-Q48NH-C

Part No UWS-5/10-Q48NH-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 50W / Isolated Module DC DC Converter 1 Output 5V 10A 18V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series UWS
Package Tray
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Current - Output (Max) 10A
Power (Watts) 50 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 91%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/16 Brick
Size / Dimension 1.31" L x 0.91" W x 0.36" H (33.3mm x 23.1mm x 9.1mm)
Control Features Enable, Active Low
Base Product Number UWS-5
Standard Package 128
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1351204-UWS-5/10-Q48NH-C
Ultra Librarian 3D Model Ultra Librarian UWS-5/10-Q48NH-C CAD Model

Description

The UWS series isolated module is a high-quality DC-DC converter designed for use in commercial applications.

  • Voltage Isolation: 2.25 kV
  • Output Current (Max): 10A
  • Power Rating: 50 W
  • Output Voltage: 5V
  • Efficiency: 91%
  • Temperature Range: -40°C ~ 85°C
  • Mounting Type: Through Hole
  • Package: 8-DIP Module, 1/16 Brick, 1.31" L x 0.91" W x 0.36" H (33.3mm x 23.1mm x 9.1mm)
  • Features: Remote On/Off and UVLO, Enable (Active Low)
  • RoHS Compliant: Yes
