Same model may have multiple batches, images only for reference.

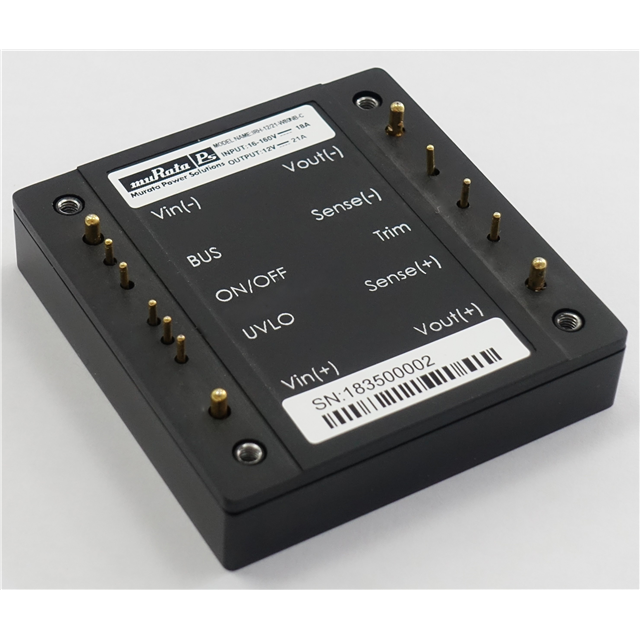

IRH-12/21-W80NB-C Real Image
Same model may have multiple batches, images only for reference.

IRH-12/21-W80NB-C

Part No IRH-12/21-W80NB-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 1/2 BRICK, 12VOUT @ 12.5A, 16-16 / Isolated Module DC DC Converter 1 Output 12V 21A 16V - 160V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series IRH-W80 (250W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 16V
Voltage - Input (Max) 160V
Voltage - Output 1 12V
Current - Output (Max) 21A
Power (Watts) 252 W
Voltage - Isolation 4.242 kV
Applications ITE (Commercial) , Railway
Features Adjustable Output, Baseplate, Remote On/Off, Remote Sense
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 91%
Mounting Type Through Hole
Package / Case Half Brick
Size / Dimension 2.49" L x 2.39" W x 0.55" H (63.2mm x 60.7mm x 14.0mm)
Supplier Device Package Half Brick
Control Features Enable, Active Low
Approval Agency CE, cURus, UL
Base Product Number IRH-12
Standard Package 36
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1350034-IRH-12/21-W80NB-C
Ultra Librarian 3D Model Ultra Librarian IRH-12/21-W80NB-C CAD Model

Description

The Murata Power Solutions Inc. IRH-12/21-W80NB-C is an isolated module DC DC converter with a voltage input range of 16V to 160V and a voltage output of 12V.

  • Input Voltage: 16V to 160V
  • Output Voltage: 12V
  • Output Current (Max): 21A
  • Power (Watts): 252W
  • Package: Half Brick
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C (With Derating)
  • Voltage Isolation: 4.242 kV
  • Efficiency: 91%
  • Features: Adjustable Output, Baseplate, Remote On/Off, Remote Sense
  • Approvals: CE, cURus, UL
