Same model may have multiple batches, images only for reference.

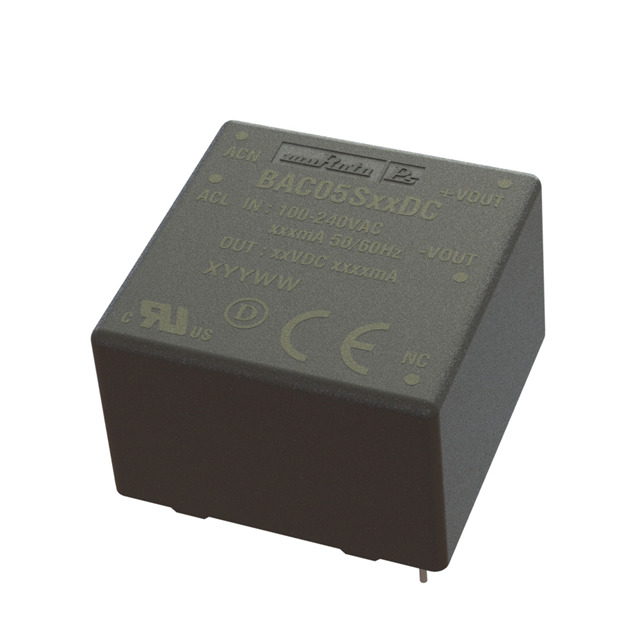

BAC05S05DC Real Image
Same model may have multiple batches, images only for reference.

BAC05S05DC

Part No BAC05S05DC
Manufacturer Murata Power Solutions Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 5V 5W / Enclosed AC DC Converters 1 Output 5V 1A 85 ~ 264 VAC, 120 ~ 370 VDC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Murata Power Solutions Inc.
Series BAC05 (5W)
Package Tube
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 5V
Current - Output (Max) 1A
Power (Watts) 5 W
Applications ITE (Commercial) , Medical
Features Universal Input
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 76%
Mounting Type Through Hole
Package / Case 5-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.64" H (25.4mm x 25.4mm x 16.3mm)
Approval Agency CE, cURus
Line Regulation ±0.5%
Load Regulation ±1%
Base Product Number BAC05S
Standard Package 20
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1350502-BAC05S05DC
Ultra Librarian 3D Model Ultra Librarian BAC05S05DC CAD Model

Description

The BAC05S05DC is an enclosed type AC DC converter from Murata Power Solutions Inc.

  • Type: Enclosed AC DC Converter
  • Features: Universal Input
  • Package: Tube
  • Size/Dimension: 1.00" L x 1.00" W x 0.64" H (25.4mm x 25.4mm x 16.3mm)
  • Efficiency: 76%
  • Package/Case: 5-DIP Module
  • Application: ITE (Commercial), Medical
  • Standard Package: 20
  • Power: 5 W
  • Output: Single
  • Maximum Output Current: 1A
  • Voltage Input: 85 ~ 264 VAC, 120 ~ 370 VDC
  • Voltage Output: 5V
