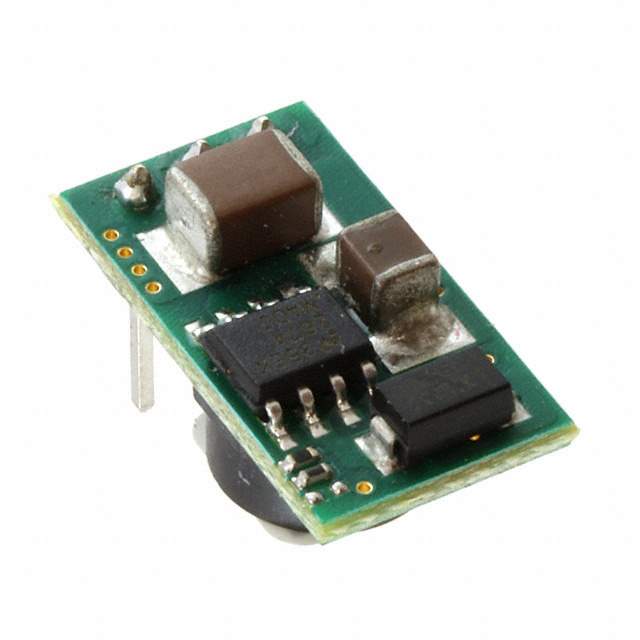

7803SRH-C Real Image
Same model may have multiple batches, images only for reference.

7803SRH-C

Part No 7803SRH-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 2W / Linear Regulator Replacement DC DC Converter 1 Output 3.3V 500mA 7.5V - 36V Input
Datasheet
7803SRH-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series 78SR
Package Box
Type Linear Regulator Replacement
Number of Outputs 1
Voltage - Input (Min) 7.5V
Voltage - Input (Max) 36V
Voltage - Output 1 3.3V
Current - Output (Max) 500mA
Power (Watts) 2 W
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 95%
Mounting Type Through Hole
Package / Case 3-SIP Module
Size / Dimension 0.75" L x 0.41" W x 0.37" H (19.1mm x 10.4mm x 9.3mm)
Base Product Number 78
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1352141-7803SRH-C
Ultra Librarian 3D Model Ultra Librarian 7803SRH-C CAD Model

Description

The Murata Power Solutions linear regulator replacement, part number 1352141-7803SRH-C, is a DC-DC converter that is designed for use in ITE (Commercial) applications.

  • Application: ITE (Commercial)
  • Power (Watts): 2W
  • Number of Outputs: 1
  • Output Current: 500mA
  • Input Voltage Range: 7.5V to 36V
  • Output Voltage: 3.3V
  • Efficiency: 95%
  • Mounting Type: Through Hole
  • Size / Dimension: 0.75" L x 0.41" W x 0.37" H
  • Package / Case: 3-SIP Module
  • Operating Temperature: -40°C to 70°C
  • Features: SCP
