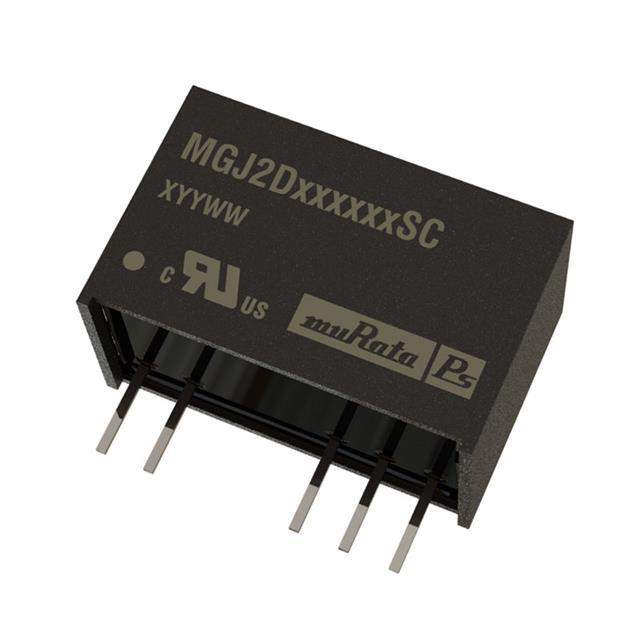

MGJ2D241509SC Real Image
Same model may have multiple batches, images only for reference.

MGJ2D241509SC

Part No MGJ2D241509SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 5.2kVDC Isolated 2W Gate Drive DC/DC Converters
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series MGJ2
Packaging Tube
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 21.6V
Voltage Input MAX 26.4V
Voltage - Output 1 15V
Voltage - Output 2 -8.7V
Current - Output (Maximum) 80mA, 40mA
Power (Watts) 2W
Voltage - Isolation 5.2kV (5200V)
Applications ITE (Commercial), Medical
Features SCP
Operating Temperature Range -40°C ~ 100°C
Efficiency 82%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Size 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm)
Win Source Part Number 1221920-MGJ2D241509SC
Manufacturer Homepage www.murata-ps.com
Popularity Medium
Supply and Demand Status Limited
Family Name MGJ2D241509SC
Introduction Date April 17, 2014
Country of Origin China
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MGJ2D241509SC CAD Model

Description

The MGJ2D241509SC is a 7-SIP module with 5 leads from Murata Power Solutions Inc. This isolated module operates at a power (watts) of 2W with an efficiency of 82%.

  • Operating Temperature Range: -40°C to 100°C
  • Voltage Output 1: 15V
  • Voltage Output 2: -8.7V
  • Voltage Isolation: 5.2kV (5200V)
  • Applications: ITE (Commercial) and Medical
  • Package Size: 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm)
  • Mounting Style: Through hole
  • Features: SCP (Short Circuit Protection)
  • Alternative Parts: VQA-S24-D15-SIP, TEL 3-2023, and REC3-2415DRWZ/H4/A
  • Estimated EOL Date: 2026
  • Manufactured in: China
