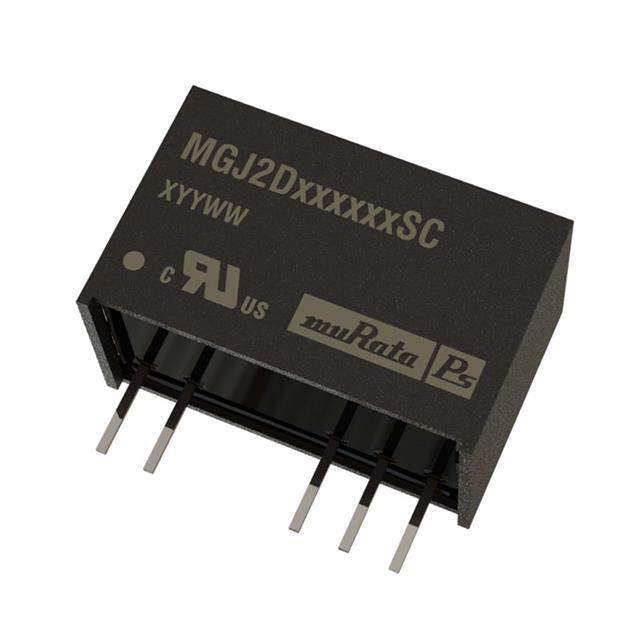

MGJ2D052005SC Real Image
Same model may have multiple batches, images only for reference.

MGJ2D052005SC

Part No MGJ2D052005SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 5VIN 2-OUT 20V/-5V 0.08A/0.04A 2W 5-Pin SIP Module Tube / DC/DC CONVERTER 20V -5V 2W
Datasheet
MGJ2D052005SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series MGJ2
Packaging Tube
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 4.5V
Voltage Input MAX 5.5V
Voltage - Output 1 20V
Voltage - Output 2 -5V
Current - Output (Maximum) 80mA, 40mA
Power (Watts) 2W
Voltage - Isolation 5.2kV (5200V)
Applications ITE (Commercial), Medical
Features SCP
Operating Temperature Range -40°C ~ 100°C
Efficiency 78.5%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm)
Win Source Part Number 788430-MGJ2D052005SC
Popularity Medium
Supply and Demand Status Limited
Family Name MGJ2
Introduction Date April 17, 2014
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian MGJ2D052005SC CAD Model

Description

The Murata Power Solutions Inc. MGJ2D052005SC is an isolated module from Murata Power Solutions Inc. with a 2W power rating.

  • Series: MGJ2
  • Power: 2W
  • Package: 7-SIP module, 5 leads
  • Mounting: Through hole
  • Operating Temperature: -40°C to 100°C
  • Features: SCP
  • Applications: ITE (commercial), Medical
  • Efficiency: 78.5%
  • Voltage Isolation: 5.2kV (5200V)
  • Output 1 Voltage: 20V
  • Output 2 Voltage: -5V
  • Input Voltage: 4.5V to 5.5V
  • Maximum Output 1 Current: 80mA
  • Maximum Output 2 Current: 40mA
  • Introduction Date: April 17, 2014
  • Status: Limited
