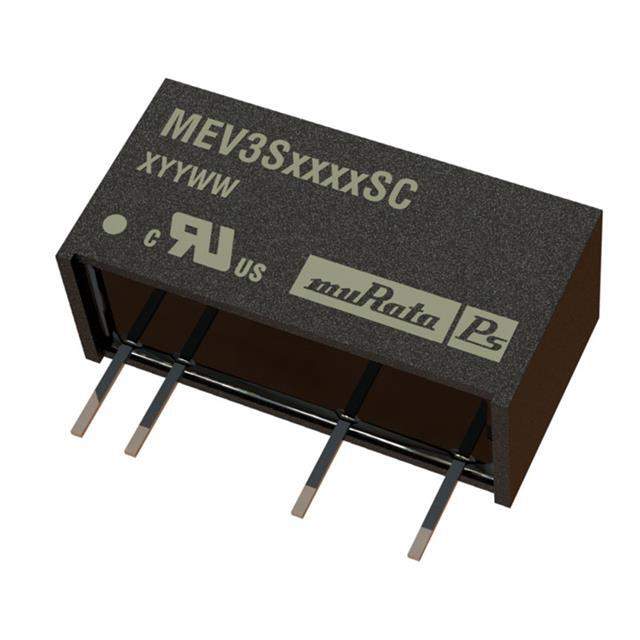

MEV3S0509SC Real Image
Same model may have multiple batches, images only for reference.

MEV3S0509SC

Part No MEV3S0509SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 3kVDC Isolated 3W Single Output DC/DC Converters
Datasheet
MEV3S0509SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series MEV3
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 4.5V
Voltage Input MAX 5.5V
Voltage - Output 1 9V
Current - Output (Maximum) 333mA
Power (Watts) 3W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Operating Temperature Range -40°C ~ 85°C
Efficiency 87%
Mounting Style Through Hole
Package 7-SIP Module, 4 Leads
Size 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Win Source Part Number 1221746-MEV3S0509SC
Manufacturer Homepage www.murata-ps.com
Popularity Medium
Supply and Demand Status Limited
Family Name MEV3S0509SC
Introduction Date August 04, 2009
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian MEV3S0509SC CAD Model

Description

The Murata Power Solutions Inc. MEV3S0509SC is an isolated module manufactured by Murata Power Solutions Inc.

  • Power Rating: 3 W
  • Efficiency: 87%
  • Voltage Isolation: 3 kV
  • Voltage Output: 9 V
  • Maximum Output Current: 333 mA
  • Package: 7-SIP package with 4 leads
  • Application: ITE (Commercial)
  • Operating Temperature Range: -40°C to 85°C
  • Halogen-Free: Compliant
