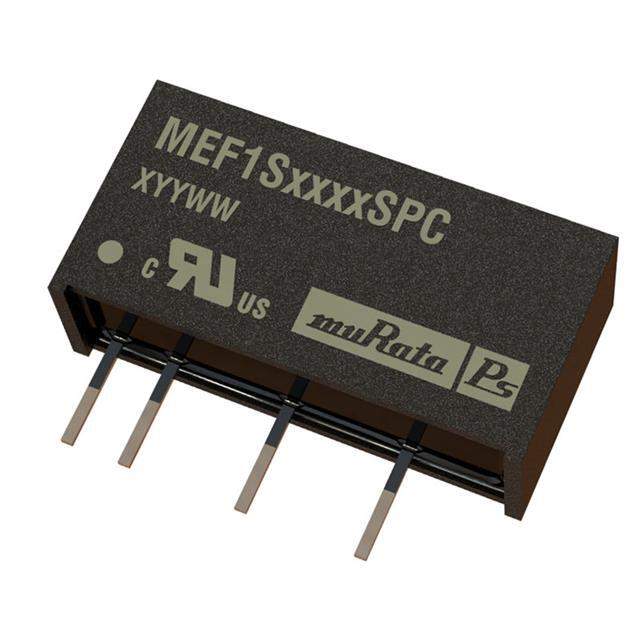

MEF1S0505SPC Real Image
Same model may have multiple batches, images only for reference.

MEF1S0505SPC

Part No MEF1S0505SPC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 5VIN 1-OUT 5V 0.2A 1W 4-Pin SIP Module / DC/DC CONVERTER 5V 1W
Datasheet
MEF1S0505SPC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series MEF1
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 4.75V
Voltage Input MAX 5.25V
Voltage - Output 1 5V
Current - Output (Maximum) 200mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features SCP
Operating Temperature Range -40°C ~ 85°C
Efficiency 73%
Mounting Style Through Hole
Package 7-SIP Module, 4 Leads
Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Win Source Part Number 788403-MEF1S0505SPC
Popularity Medium
Supply and Demand Status Limited
Family Name MEF1S0505SPC
Introduction Date November 25, 2013
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian MEF1S0505SPC CAD Model

Description

The MEF1S0505SPC is an isolated module type power supply manufactured by Murata Power Solutions Inc.

  • Win Source Part Number: 788403-MEF1S0505SPC
  • Applications: ITE (Commercial)
  • Power: 1W
  • Efficiency: 73%
  • Voltage-Isolation: 1kV (1000V)
  • Current-Output (Maximum): 200mA
