Same model may have multiple batches, images only for reference.

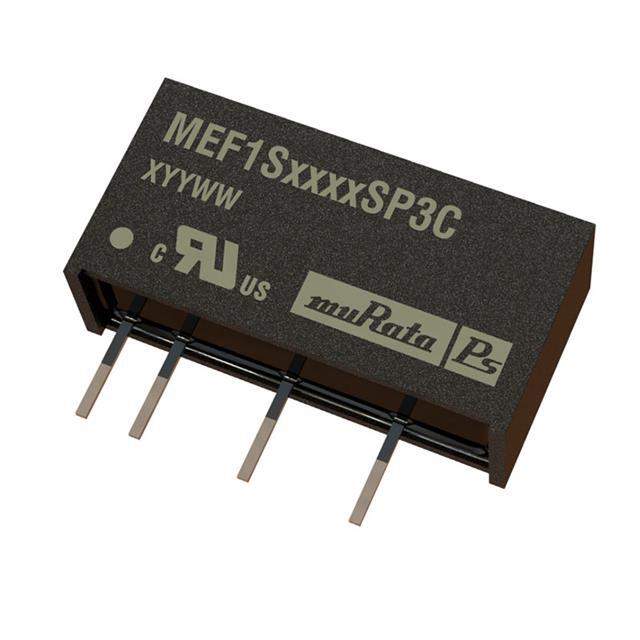

MEF1S0505SP3C Real Image
Same model may have multiple batches, images only for reference.

MEF1S0505SP3C

Part No MEF1S0505SP3C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 5VIN 1-OUT 5V 0.2A 1W 4-Pin SIP Module / DC/DC CONVERTER 5V 1W
Datasheet
MEF1S0505SP3C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series MEF1
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 4.75V
Voltage Input MAX 5.25V
Voltage - Output 1 5V
Current - Output (Maximum) 200mA
Power (Watts) 1W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Features SCP
Operating Temperature Range -40°C ~ 85°C
Efficiency 73%
Mounting Style Through Hole
Package 7-SIP Module, 4 Leads
Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Win Source Part Number 788404-MEF1S0505SP3C
Popularity Medium
Supply and Demand Status Limited
Family Name MEF1S0505SP3C
Introduction Date November 25, 2013
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian MEF1S0505SP3C CAD Model

Description

The Murata Power Solutions Inc. MEF1S0505SP3C is an isolated module from Murata Power Solutions Inc. with a maximum output current of 200mA.

  • Voltage Isolation: 3kV
  • Applications: ITE (Commercial)
  • Efficiency: 73%
  • Compliance: RoHS
