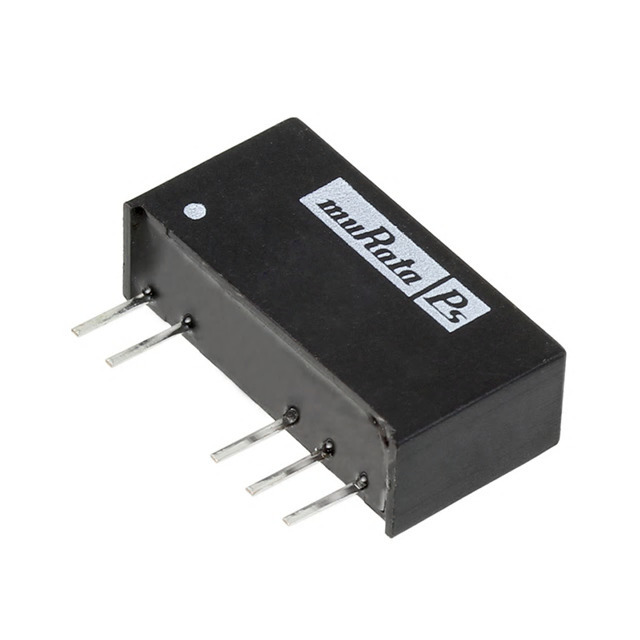

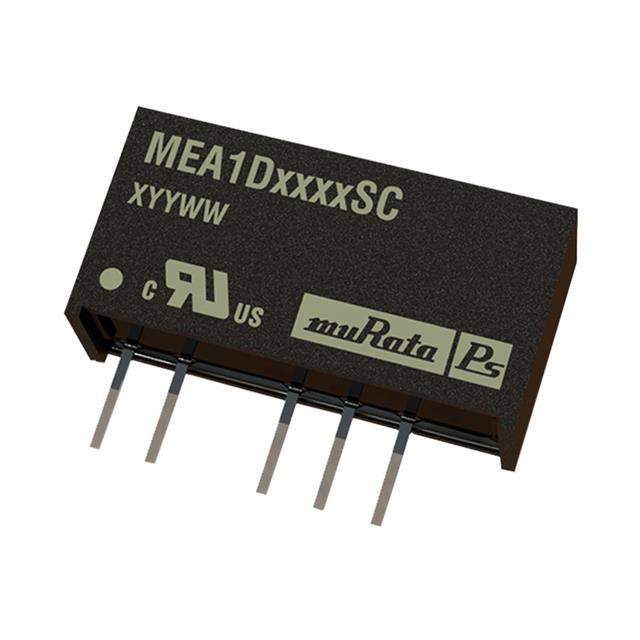

Same model may have multiple batches, images only for reference.

MEA1D2412SC

Name: MEA1D2412SC
Brand: Murata Power Solutions Inc.
SKU: 639006
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	MEA1D2412SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	Module DC-DC 24VIN 2-OUT 12V/-12V 0.042A/-0.042A 1W 5-Pin SIP Module Tube / 1kVDC Isolated 1W Dual Output DC/DC Converters \| DC DC CONVERTER +/-12V 1W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Murata Power Solutions Inc.
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Minimum)	21.6V
Voltage - Input (Maximum)	26.4V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Maximum)	42mA, 42mA
Power (W)	1W
Voltage - Isolation	1kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	87%
Mounting Style	Through Hole
Manufacturer Package	7-SIP Module, 5 Leads
Parts Dimension	0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Manufacturer Pack Quantity	25
MSL Level	1 (Unlimited)
Win Source Part Number	1221694-MEA1D2412SC
Manufacturer Homepage	www.murata.com
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	MEA1
Introduction Date	November 10, 2008
Country of Origin	China
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian MEA1D2412SC CAD Model

Alternative Products

Description

Murata Power Solutions Inc.'s 1221694-MEA1D2412SC is an isolated module type product with a through-hole mounting style.

Voltage Isolation: 1kV
Output Voltage: 12V, -12V
Efficiency: 87%
Family: MEA1
Mounting Style: Through Hole
Temperature Range: -40°C ~ 85°C
Dimensions: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Supply and Demand Status: balanced
Manufacturer Pack Quantity: 25
MSL Level: 1 (Unlimited)
Power: 1W
Voltage Input: 21.6V to 26.4V
Introduction Date: November 10, 2008
Country of Origin: China
Estimated EOL Date: 2027
Usage: Common-used part
