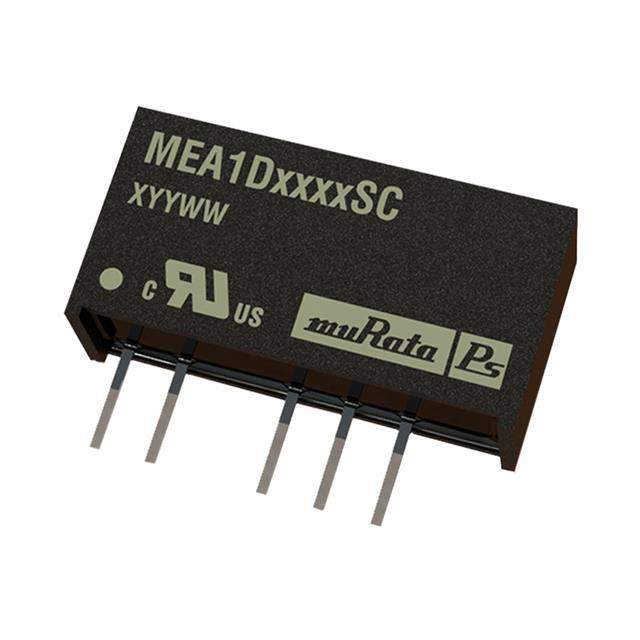

MEA1D0512SC Real Image
Same model may have multiple batches, images only for reference.

MEA1D0512SC

Part No MEA1D0512SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 1kVDC Isolated 1W Dual Output DC/DC Converters | DC DC CONVERTER +/-12V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Minimum) 4.5V
Voltage - Input (Maximum) 5.5V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Maximum) 42mA, 42mA
Power (W) 1W
Voltage - Isolation 1kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 87%
Mounting Style Through Hole
Manufacturer Package 6-SIP Module, 5 Leads
Parts Dimension 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm)
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1221687-MEA1D0512SC
Manufacturer Homepage www.murata.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MEA1D0512SC CAD Model

Description

The MEA1D0512SC is an isolated module from Murata Power Solutions Inc.

  • Packaging: 6-SIP module with 5 leads
  • Mounting: Through-hole
  • Application: ITE (Commercial)
  • Voltage Isolation: 1kV
  • Outputs: Two outputs (12V and -12V)
  • Efficiency: 87%
  • Input Voltage Range: 4.5V to 5.5V
  • Operating Temperature Range: -40°C to 85°C
  • Size: 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.
