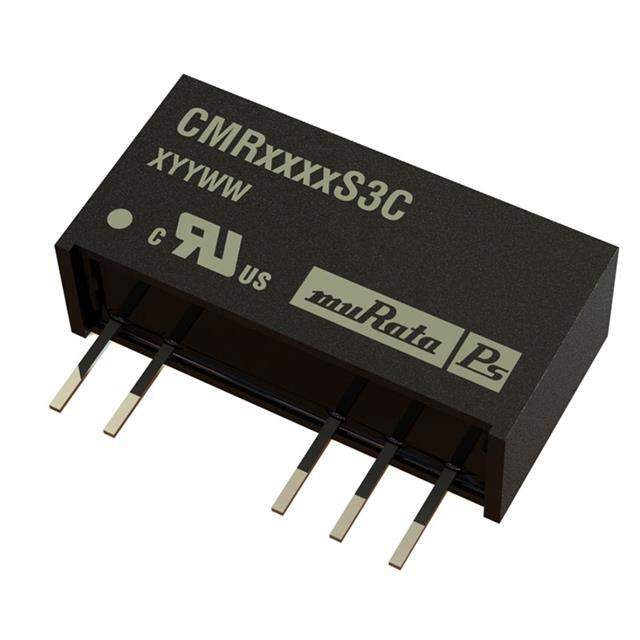

Same model may have multiple batches, images only for reference.

CMR0505SA3C

Name: CMR0505SA3C
Brand: Murata Power Solutions Inc.
SKU: 1010610
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CMR0505SA3C
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 750MW / Isolated Module DC DC Converter 1 Output 5V 150mA 4.5V - 5.5V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	CMR (0.75W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	150mA
Power (Watts)	750 mW
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	68%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 4 Leads
Dimension	0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Base Product Number	CMR05
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	288-2898-5-ND,288-2898-5,811-2898-5
Standard Package	25
Win Source Part Number	1010610-CMR0505SA3C
Ultra Librarian 3D Model	Ultra Librarian CMR0505SA3C CAD Model

Alternative Products

Description

The CMR0505SA3C is a 0.75W isolated module DC-DC converter designed for ITE (Commercial) applications.

Application: ITE (Commercial)
Power Output: 750mW
Voltage Isolation: 3kV
Output Current: 150mA
Input Voltage: 4.5V to 5.5V
Output Voltage: 5V
Efficiency: 68%
Mounting Type: Through-hole
Package/Case: 7-SIP module with 4 leads
Operating Temperature: -40°C to 85°C
Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Manufacturer: Murata Power Solutions Inc.
